Cardiology Research

Short Communication

Volume 7, Number 4, August 2016, pages 152-156

ST-Segment Elevation Myocardial Infarction: Door to Balloon Time Improvement Project

Many scientific bodies like the American College of Cardiology (ACC), American Heart Association (AHA), and the European Society of Cardiology (ESC) recommend that all ST-segment elevation myocardial infarction (STEMI) patients should undergo rapid evaluation for reperfusion therapy and have reperfusion strategy implemented promptly after contact with the medical system [1, 2].

Primary percutaneous coronary intervention (PCI) has to be performed in a timely fashion and door-to-balloon (D2B) time benchmark is ≤ 90 min in PCI capable hospital. This strategy is supported by a meta-analysis of 23 trials showing an absolute 2% reduction in mortality with primary PCI compared with fibrinolytic therapy [3]. Many trials have demonstrated that D2B time ≤ 90 min is associated with smaller infarct sizes, fewer major adverse cardiovascular events, and better long-term survival [3-8]. International guidelines in the management of patients with STEMI recommended several performance measures to monitor the quality of delivered patient care [9]. Of particular interest are the D2B time (arrival at hospital to primary PCI) and overall health care system delay (first medical contact to reperfusion); both of these are acknowledged as valuable performance indicators [10-13]. In the year 2014, King Faisal Cardiac Center (KFCC) had achieved D2B time of ≤ 90 min in 25% of patients.

King Faisal Cardiac Center is one of the primary centers which perform primary PCI as treatment for STEMI in Jeddah, Saudi Arabia. Primary PCI is the routine treatment in KFCC for eligible STEMI patients 24 h a day, 7 days a week. Guidelines recommend that D2B time should be 90 min or less. To meet this goal, multidisciplinary team was selected to improve D2B time. The team consisted of representatives from the cardiac catheterization laboratory (CCL), emergency department (ED), clinical informatics, pharmacy, nursing services, quality management department, and physician leadership.

The project was a prospective data collection for consecutive patients presenting with STEMI within 24 h of the onset of chest pain between January 2015 and December 2015. The project included all patients above the age of 18 years presenting to ED with acute cardiac chest pain within 24 h and ECG changes demonstrating ST-segment elevation or new left bundle branch block (LBBB). This meant that several patient groups were excluded from the project, including those transferred from another hospital, those less than 18 years of age, those receiving comfort measures only, those receiving fibrinolytics prior to PCI, and those receiving PCI as a non-primary procedure. The boundaries of the process began when the patient entered the ED and ended when the balloon was inflated during the PCI. The D2B time was broken down into the following clinically relevant intervals: door to ECG time (goal ≤ 10 min), ECG to catheterization laboratory team activation time (goal ≤ 5 min), catheterization laboratory activation to patient arrival to catheterization laboratory time (goal ≤ 45 min), and arrival to catheterization laboratory to balloon time (goal 15 min) and 15 min was allowed for system delays. Data were collected and analyzed, and feedback was provided through collaborative meetings with ED, emergency medical service (EMS) and CCL, hospital leadership and staff. Action plans and interventions were put in place to drive the changes in the above metrics which resulted in change in flow of care and improved communications among stake holders.

The total number of eligible patients for primary PCI who met the inclusion criteria during the study period was 37 (Fig. 1). The number of patients who achieved the target D2B time of 90 min or less was 20 (54%) (Fig. 1). Nine patients (24.4%) had D2B time between 91 and 120 min and eight patients (21.6%) beyond 120 min. There was a noticeable seasonal variation in the number of patients presenting with STEMI, with the highest presentation recorded in the third quarter of the year, a total of 14 patients (37.8%) (Fig. 2).

Click for large image

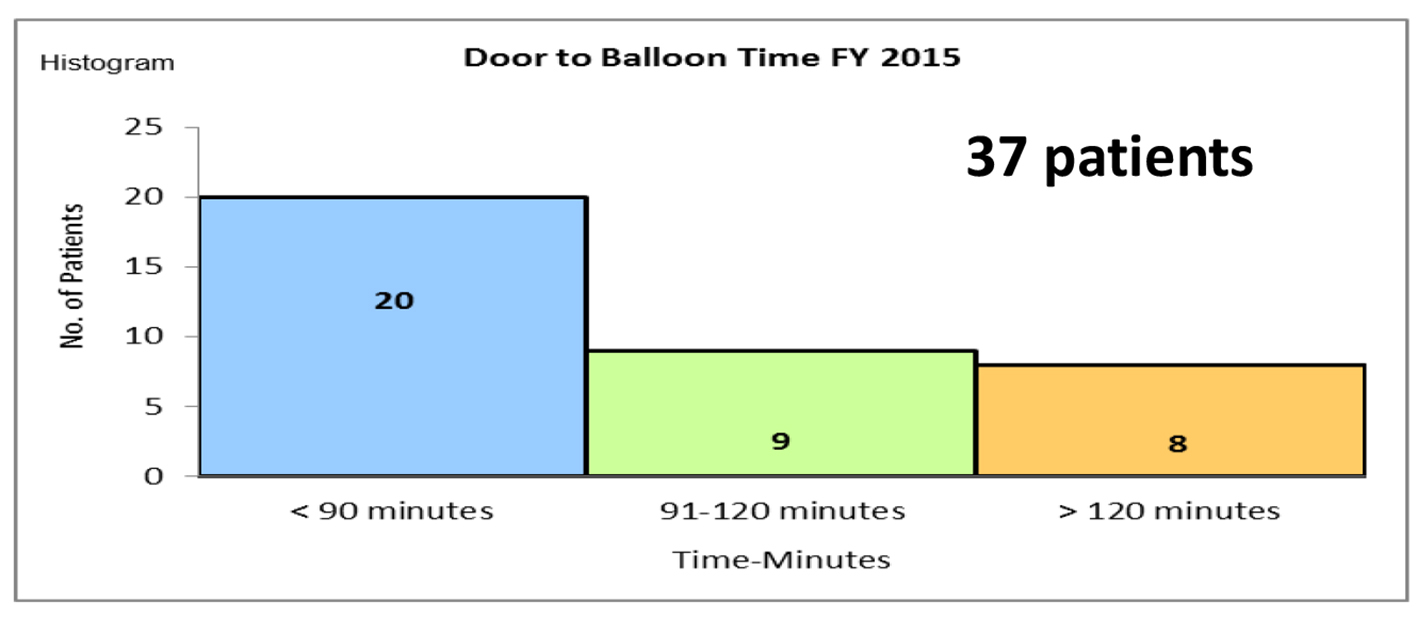

Figure 1. The total number of STEMI patients and the D2B time in each group.

Click for large image

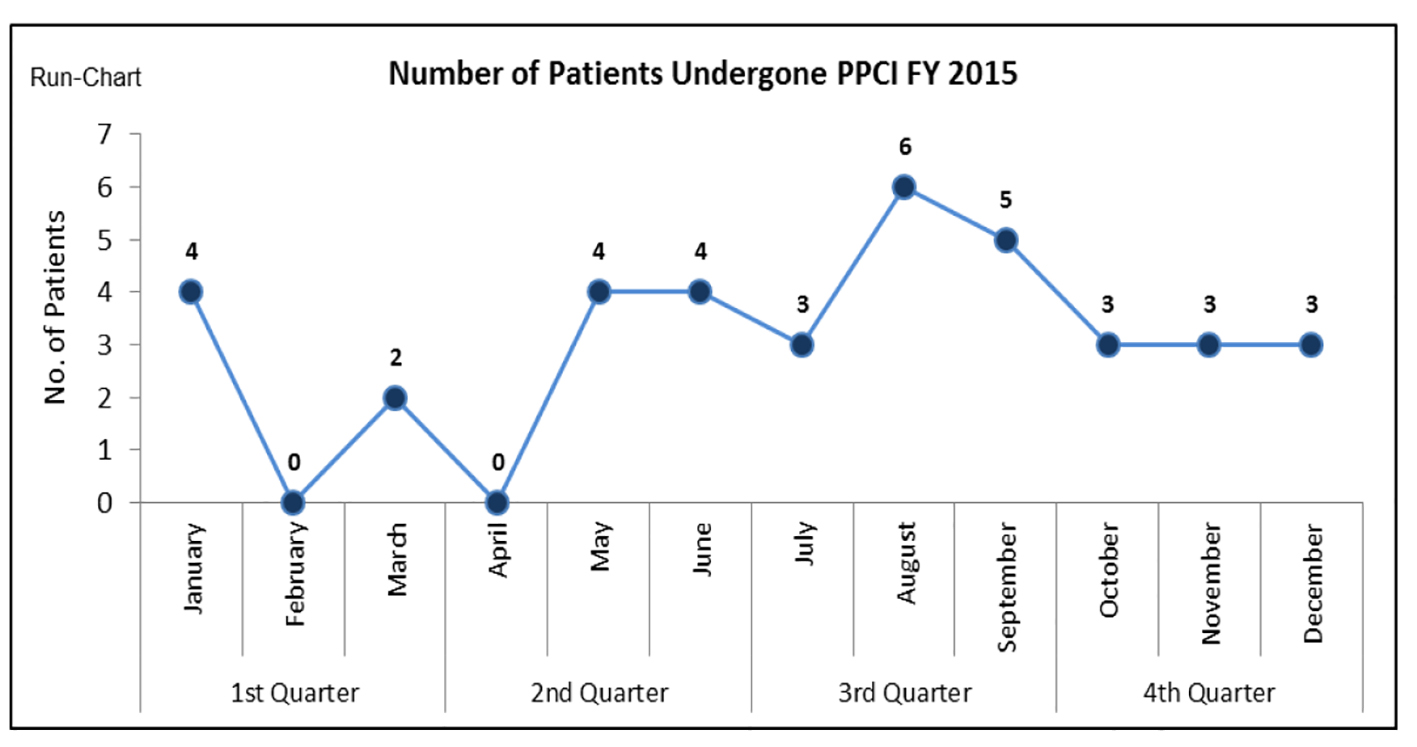

Figure 2. The distribution of patients throughout the year.

The results of this analysis convey perceptions into “real life fact” in the management of STEMI patients in a newly established cardiac center in Saudi Arabia. International guidelines in the management of patients with STEMI recommend several performance measures to monitor the quality of delivered patient-centred care [9]. Of particular interest are the D2B time and overall health care system delay (first medical contact to reperfusion); both of these are acknowledged as valuable performance indicators [10-13]. Our data demonstrate only 54% achievement in meeting the D2B treatment time of less than 90 min.

Several factors have contributed to the delays in achieving the goal. Failure to promptly triage and identify STEMI patients has contributed to the major delay in D2B time. The reasons ranged from patients not declaring themselves, lack of awareness to atypical presentations (Fig. 3).

Click for large image

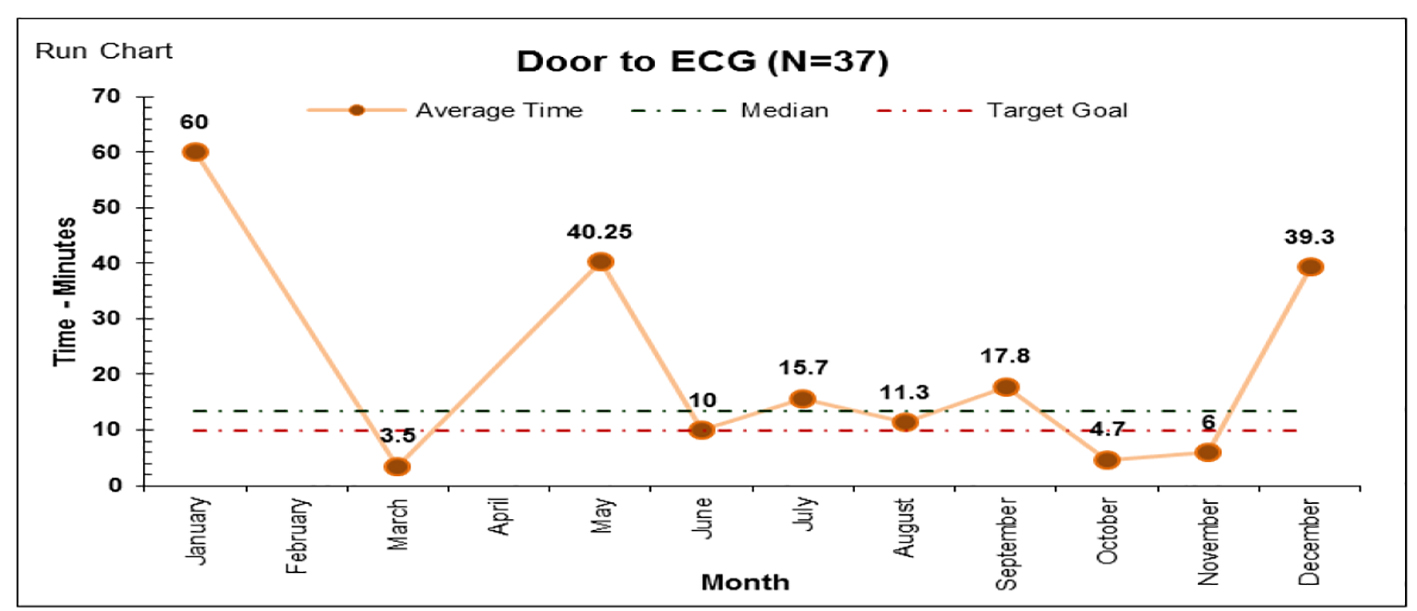

Figure 3. The monthly mean time of door to ECG time consistently above target of less than 10 min.

An unexpected finding in this study was the delay of the process of catheterization laboratory activation and transportation from ED to the catheterization laboratory which is located in a different building; this was longer than expected and shown in Figures 4 and 5, respectively. Variation in the mean time required to open the infarct-related artery once the patient arrived to the catheterization laboratory is the least to contribute to the delays as shown in Figure 6.

Click for large image

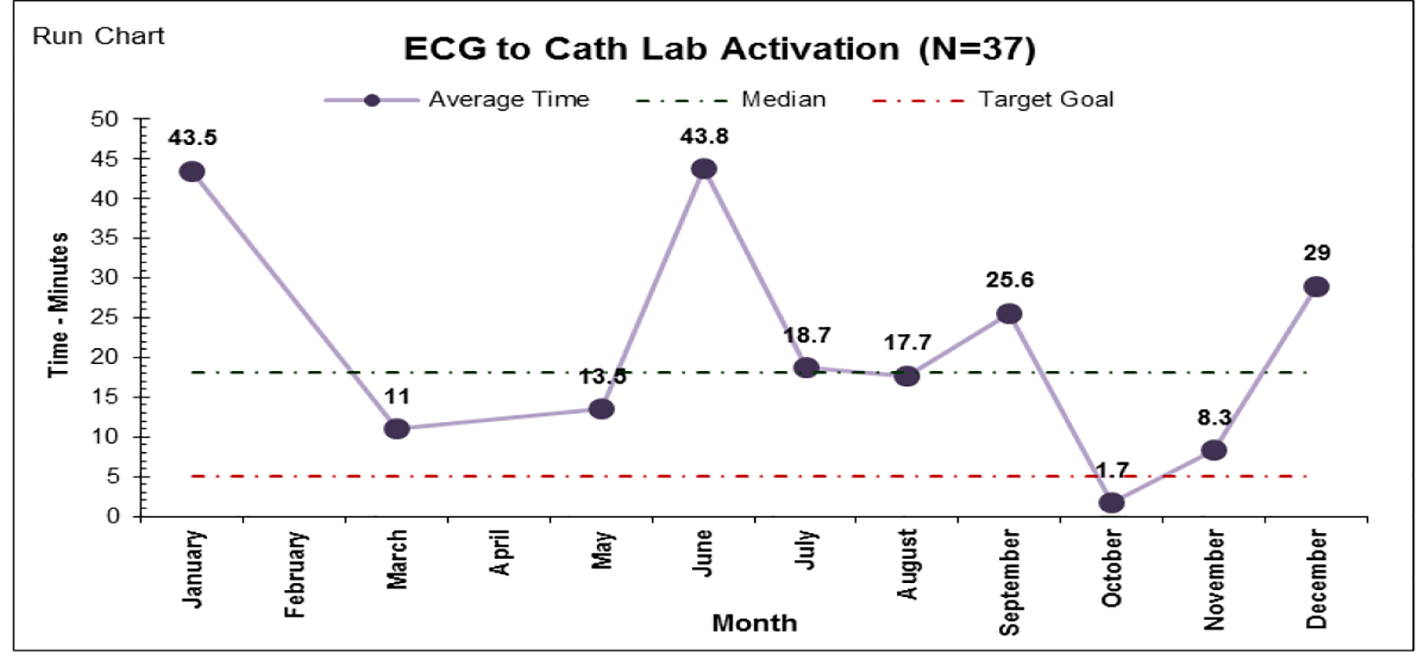

Figure 4. The mean time to activate the catheterization laboratory.

Click for large image

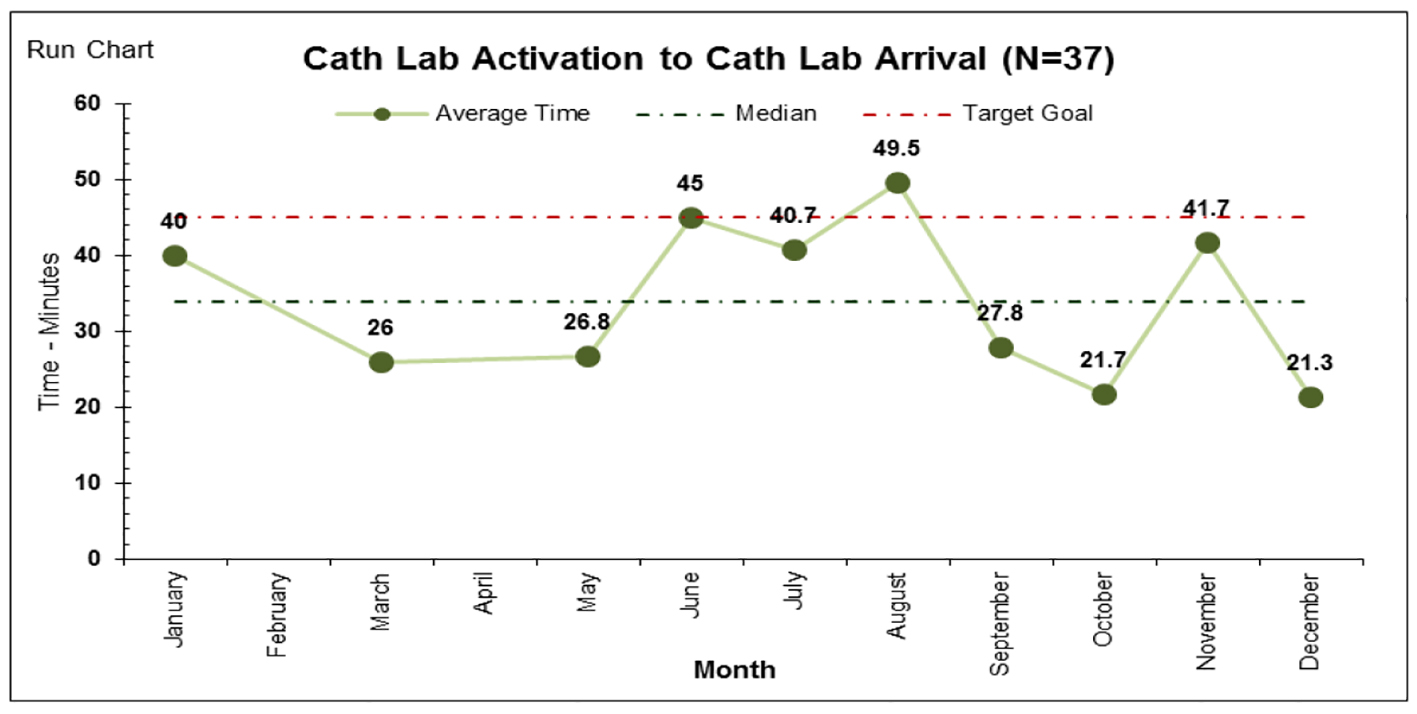

Figure 5. Monthly mean time from catheterization laboratory activation till patient arrival.

Click for large image

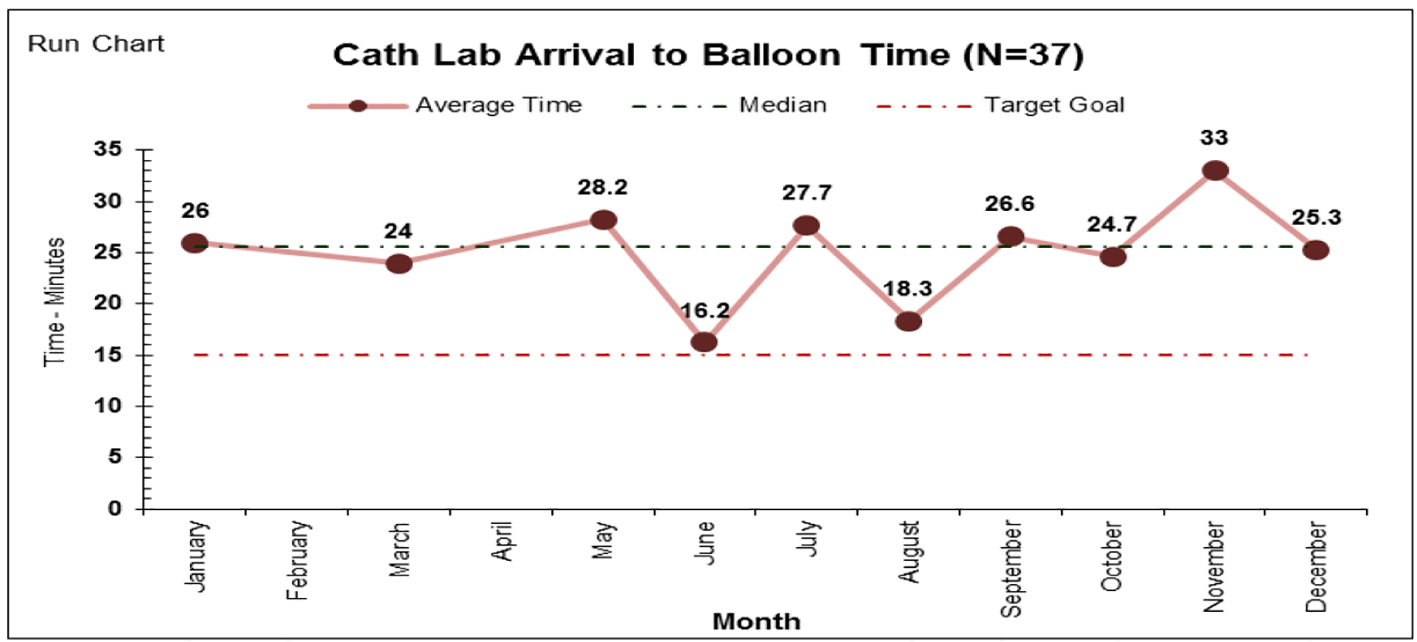

Figure 6. The time it took to open the infarct-related artery from patient arrival to the catheterization laboratory.

In the Gulf Registry of Acute Coronary Events (Gulf RACE 2), 1,832 were admitted to the surveyed hospitals with CCL facilities. Only 198 (10.8%) patients received primary PCI, of whom only 55% achieved D2B time ≤ 90 min.

In that STEMI cohort of 93 patients from Saudi Arabia, timely primary PCI of less than 90 min was achieved in 40.9% of patients [14].

The similarities of these results demonstrated in several hospitals in Saudi Arabia require a collaborative action among health care stake holders to implement proper strategies to improve the local practice and minimize D2B time. The key strategies to improve D2B time based on quality improvement initiative include education campaign for ER staff, immediate activation of catheterization laboratory by ED physicians, establishment of a single call system for activating catheterization laboratory, use of data monitoring and prompt data feedback to ED and catheterization laboratory, development of a speedy referral mechanism to accept and transfer patients for primary PCI from nearby non-catheterization laboratory-based hospitals to increase the volume of patients and finally seeking of senior management support to implement organizational changes directed at improving the health care environment and fostering timely D2B in STEMI patients [15].

Quality improvement initiative for medical policies and procedures is a continually evolving endeavour in all medical facilities that strive to deliver excellent care.

Primary PCI is an effective treatment strategy for STEMI. Current guidelines for the treatment of STEMI recommend a D2B time of 90 min or less for patients undergoing primary PCI. D2B time has become a performance measure and is the focus of regional and national quality improvement initiatives [16]. Our experience at KFCC demonstrates the effectiveness and durability of process changes targeting timeliness of primary PCI. We were able to achieve overall significant decrease in the percentage of D2B time, despite the measurable improvement challenges remain. The process of quality improvement of D2B time continues to evolve.

Single center data and small number of patients are limitations, and outcome data were not available as it was not a priority in this quality improvement study.

Acknowledgments

We would like to thank the staff of King Faisal Cardiac Center catheterization laboratory for collecting the data and Mrs Chona Barcelona from quality department for generating the graphs.

Conflicts of Interest

None of the authors have any declared conflicts of interest.

Ethical Approval

This project was deemed exempt from ethical approval as it is an improvement study and not a study on human subjects, and hence ethical approval was not required.

1. Steg PG, James SK, Gersh BJ. 2012 ESC STEMI guidelines and reperfusion therapy: Evidence-based recommendations, ensuring optimal patient management. Heart. 2013;99(16):1156-1157.
   doi pubmed
2. Fox KA, Goodman SG, Klein W, Brieger D, Steg PG, Dabbous O, Avezum A. Management of acute coronary syndromes. Variations in practice and outcome; findings from the Global Registry of Acute Coronary Events (GRACE). Eur Heart J. 2002;23(15):1177-1189.
   doi pubmed
3. Keeley EC, Boura JA, Grines CL. Comparison of primary and facilitated percutaneous coronary interventions for ST-elevation myocardial infarction: quantitative review of randomised trials. Lancet. 2006;367(9510):579-588.
   doi
4. Dryja T, Kornacewicz-Jach Z, Goracy J, Przybycien K, Jodko L, Skowronek A, Kurowski M, et al. Treatment of acute ST-segment elevation myocardial infarction in West Pomerania province of Poland. Comparison between primary coronary intervention and thrombolytic therapy. Kardiol Pol. 2006;64(6):591-599; discussion 600-591.
5. Brodie BR, Hansen C, Stuckey TD, Richter S, Versteeg DS, Gupta N, Downey WE, et al. Door-to-balloon time with primary percutaneous coronary intervention for acute myocardial infarction impacts late cardiac mortality in high-risk patients and patients presenting early after the onset of symptoms. J Am Coll Cardiol. 2006;47(2):289-295.
   doi pubmed
6. Cannon CP, Gibson CM, Lambrew CT, Shoultz DA, Levy D, French WJ, Gore JM, et al. Relationship of symptom-onset-to-balloon time and door-to-balloon time with mortality in patients undergoing angioplasty for acute myocardial infarction. JAMA. 2000;283(22):2941-2947.
   doi pubmed
7. Kumbhani DJ, Cannon CP, Fonarow GC, Liang L, Askari AT, Peacock WF, Peterson ED, et al. Association of hospital primary angioplasty volume in ST-segment elevation myocardial infarction with quality and outcomes. JAMA. 2009;302(20):2207-2213.
   doi pubmed
8. Estevez-Loureiro R, Lopez-Sainz A, Perez de Prado A, Cuellas C, Calvino Santos R, Alonso-Orcajo N, Salgado Fernandez J, et al. Timely reperfusion for ST-segment elevation myocardial infarction: Effect of direct transfer to primary angioplasty on time delays and clinical outcomes. World J Cardiol. 2014;6(6):424-433.
   doi pubmed
9. Terkelsen CJ. Time to treatment-door-to-balloon time is not everything. Herz. 2014;39(6):672-676.
   doi pubmed
10. Bradley EH, Nallamothu BK, Herrin J, Ting HH, Stern AF, Nembhard IM, Yuan CT, et al. National efforts to improve door-to-balloon time results from the Door-to-Balloon Alliance. J Am Coll Cardiol. 2009;54(25):2423-2429.
    doi pubmed
11. Lassen JF, Botker HE, Terkelsen CJ. Timely and optimal treatment of patients with STEMI. Nat Rev Cardiol. 2013;10(1):41-48.
    doi pubmed
12. Rasmussen MB, Frost L, Stengaard C, Brorholt-Petersen JU, Dodt KK, Sondergaard HM, Terkelsen CJ. Diagnostic performance and system delay using telemedicine for prehospital diagnosis in triaging and treatment of STEMI. Heart. 2014;100(9):711-715.
    doi pubmed
13. Thorsted Sorensen J, Steengaard C, Holmvang L, Okkels Jensen L, Terkelsen CJ. [Primary percutaneous coronary intervention as a national Danish reperfusion strategy of ST-elevation myocardial infarction]. Ugeskr Laeger. 2013;175(4):181-185.
    pubmed
14. Shehab A, Al-Habib K, Hersi A, Al-Faleh H, Alsheikh-Ali A, Almahmeed W, Suleiman KJ, et al. Quality of care in primary percutaneous coronary intervention for acute ST-segment -elevation myocardial infarction: Gulf RACE 2 experience. Ann Saudi Med. 2014;34(6):482-487.
    pubmed
15. Krumholz HM, Bradley EH, Nallamothu BK, Ting HH, Batchelor WB, Kline-Rogers E, Stern AF, et al. A campaign to improve the timeliness of primary percutaneous coronary intervention: Door-to-Balloon: An Alliance for Quality. JACC Cardiovasc Interv. 2008;1(1):97-104.
    doi pubmed
16. Ellahham Md S, Aljabbari S, Harold Mananghaya T, S JR, Al Zubaidi A. Reducing Door to- Balloon- Time for Acute ST Elevation Myocardial Infarction In Primary Percutaneous Intervention: Transformation using Robust Performance Improvement. BMJ Qual Improv Rep. 2015;4(1).
