Cardiology Research

Original Article

Volume 8, Number 4, August 2017, pages 154-160

Safety and Feasibility of Transcatheter Interruption of Ruptured Sinus of Valsalva Aneurysm Using the Cocoon Duct Occluder: Immediate Results and Mid-Term Follow-Up

Ruptured sinus of Valsalva aneurysm (RSOVA), though rare, relatively more common in Asians, is a well-described clinical entity [1]. Aneurysms mostly arise from right coronary sinus (RCS) in 70%, non-coronary sinus (NCS) in 29%, and rarely from left coronary sinus in 1% [2]. It is usually congenital in origin with a tendency to rupture into the right-sided chambers of the heart, resulting in a left-to-right shunt with a profound hemodynamic effect with symptoms of palpitation, heart failure to sudden death in nearly 80% if left untreated [3]. Since the first report of device closure of RSOVA in 1994, it is increasingly being reported as either case reports or case series and is gradually replacing surgical correction with cardiopulmonary bypass, conventionally the mainstay of treatment [4-7]. Transcatheter closure (TCC) had been performed using Amplatzer duct occluder (ADO), ventricular septal defect (VSD) occluder, atrial septal defect (ASD) occluder, Gianturco coils and Rashkind umbrella [8-13]. Our study describes the experience of immediate and mid-term follow-up of TCC of RSOVA with Cocoon duct occluder (CDO; Vascular Innovations, Nonthaburi, Thailand).

This was a prospective, single-center study conducted in the Department of Cardiology, LPS Institute of Cardiology, G.S.V.M. Medical College, Kanpur, UP, India between January 2010 and March 2015. Thirteen consecutive patients of RSOVA were admitted during this period, of whom five were referred for surgical correction due to associated VSD in three, moderate aortic regurgitation (AR) in one, and rupture into left ventricle in one. Eight patients were chosen for TCC of RSOVA with CDO (Vascular Innovations, Nonthaburi, Thailand). All patients underwent comprehensive evaluation including chest X-ray, electrocardiogram, transrthoracic echocardiography (TTE) and intraprocedural transesophageal echocardiography (TEE) with colour Doppler interrogation by Vivid 7™ GE (Siemens, Germany) ultrasound system. RSOVA was diagnosed by aneurysmally dilated respective sinus of origin and continous flow with its communication into either right atrium (RA), right ventricular outflow tract (RVOT) or left ventricle revealing a classical windsock deformity (Fig. 1a, b, c, d, Supplementary video 1, www.cardiologyres.org). The diameter of the RSOVA was measured at the aortic end as well as at the site of rupture. Informed consent was obtained from all.

Click for large image

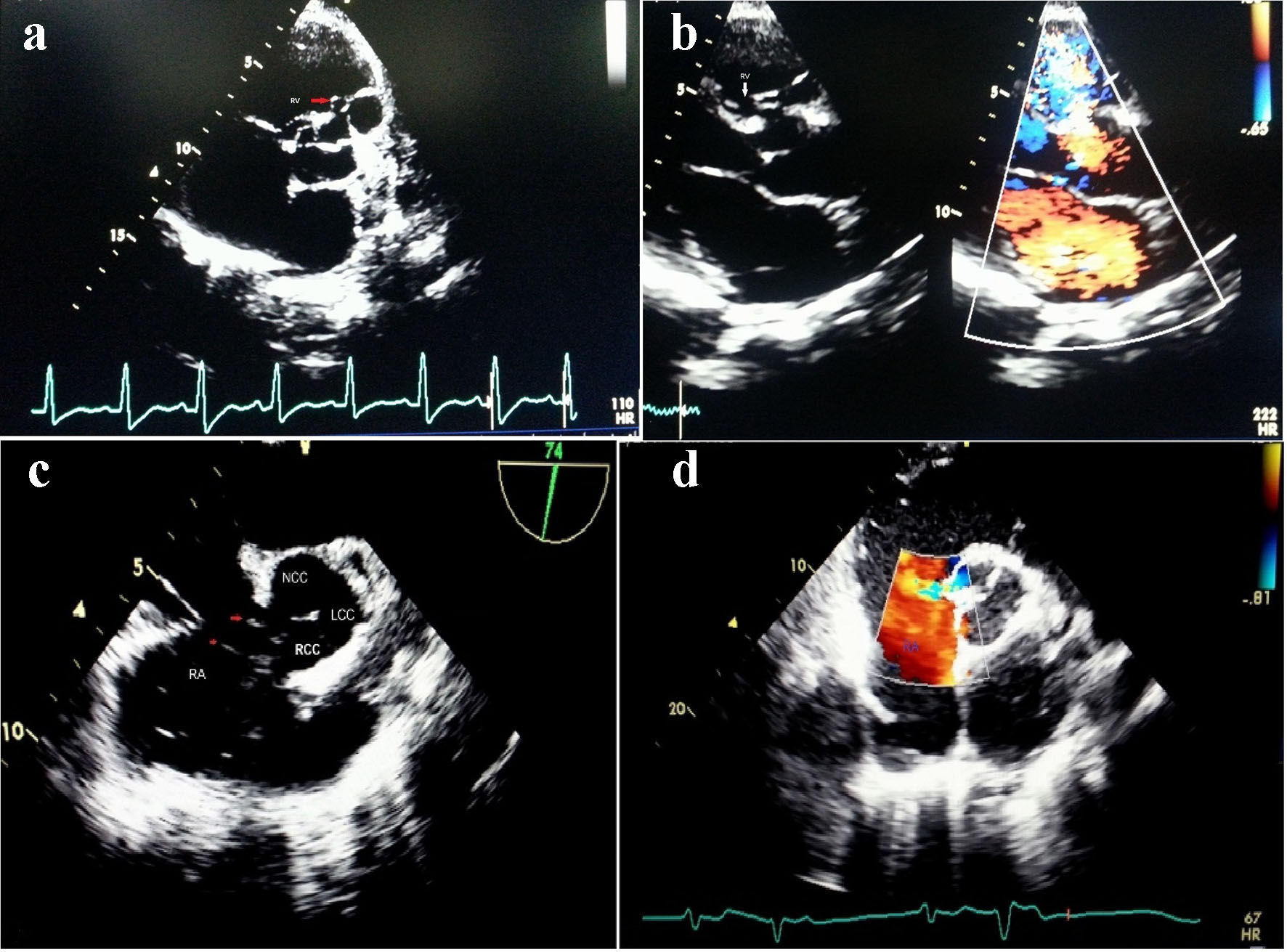

Figure 1. TTE view showing SOVA arising from right coronary cusp into right ventricle (a, b); non-coronary cusp rupturing into right atrium on TEE view (c, d).

All procedures were performed under local anesthesia under TTE guidance. The femoral vein and artery were accessed by 8-F and 5-F sheath, respectively. Intravenous heparin (100 IU/kg) and teicoplanin 400 mg were given. Aortic root angiography was performed by 5-F pigtail catheter. The left anterior oblique with cranial tilt projection was preferred for RSOVA draining into RA, right anterior oblique view for RSOVA rupturing into RVOT and few tailored view depending on the need (Fig. 2a, b). The RSOVA was measured at its aortic end by angiography using quantitative coronary angiography (QCA) and TEE. The larger of the two measurements was considered for device selection. The size of the CDO selected was such that its aortic segment was 2 - 4 mm larger than this diameter.

Click for large image

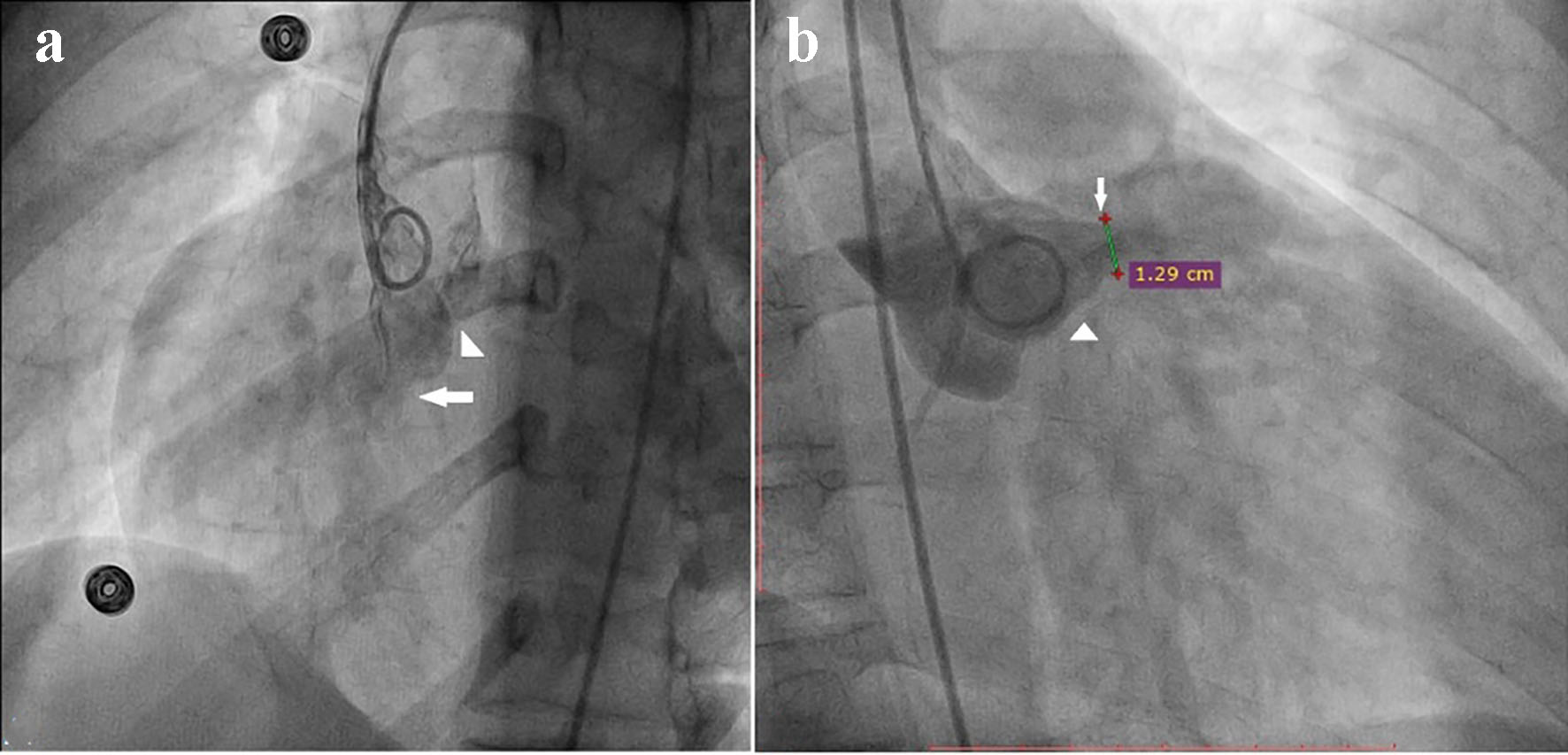

Figure 2. Antero-posterior view showing SOVA from NCC rupturing into RA (a). Right anterior oblique view showing SOVA from RCC rupturing into RV (b).

The defect was crossed from the aortic side using a 5-F Judkins right (JR) coronary catheter over a 0.035" straight tip glide wire (Terumo Inc., Japan). With catheter across RSOV, exchange length wire (330 cm, 0.035" Terumo wire) was passed into RA or RVOT and snared with 2 cm EN Snare Endovascular Snare System (Merit Medial, USA) (Fig. 3a, b) bringing wire out of right femoral venous sheath, thereby establishing a stable arteriovenous wire loop (Fig. 3c). A 10- to 12-F long Cocoon delivery sheath (Vasc Innovation, Thailand) depending on the size of the device was introduced over the exchange length wire from the venous side into ascending aorta across the defect (Fig. 3d). CDO with its attached delivery cable was then inserted through the delivery sheath, and its aortic disk was deployed in the ascending aorta. The whole assembly was pulled back and positioned carefully till the aortic disk blocked the aortic end of the SOVA (Fig. 4) and it was ensured that aortic valve leaflets were free as seen on TEE. After confirming the precise placement, the rest of the CDO was deployed on the right side across the defect. During this maneuvre, a gentle traction was exerted on the delivery cable, but taking special care to ensure seating of the aortic disk on the aortic side without slippage into the aneurysm. After 10-min delay, aortic root angiogram was again performed to ensure proper device position and make certain that there was no significant AR, tricuspid regurgitation (TR), para-device leak or any encroachment on right coronary artery if RSOVA was arising from right coronary cusp (RCC) which was also confirmed on TEE (Figs. 4 and 5a, b, c, d). The CDO was then released from the delivery cable by turning the cable counter clockwise using the pin vise (Fig. 6a, b, c, d). TTE was performed next day to look any residual flow across the device. All patients were discharged in stable position on next day with advice of aspirin 75 mg once daily for 6 months. They were studied clinically and by TTE at discharge, 1, 3, 6 months, and annually thereafter. Procedure-related AR was defined as the occurrence of any grade of new AR or worsening by more than one grade of pre-existing AR.

Click for large image

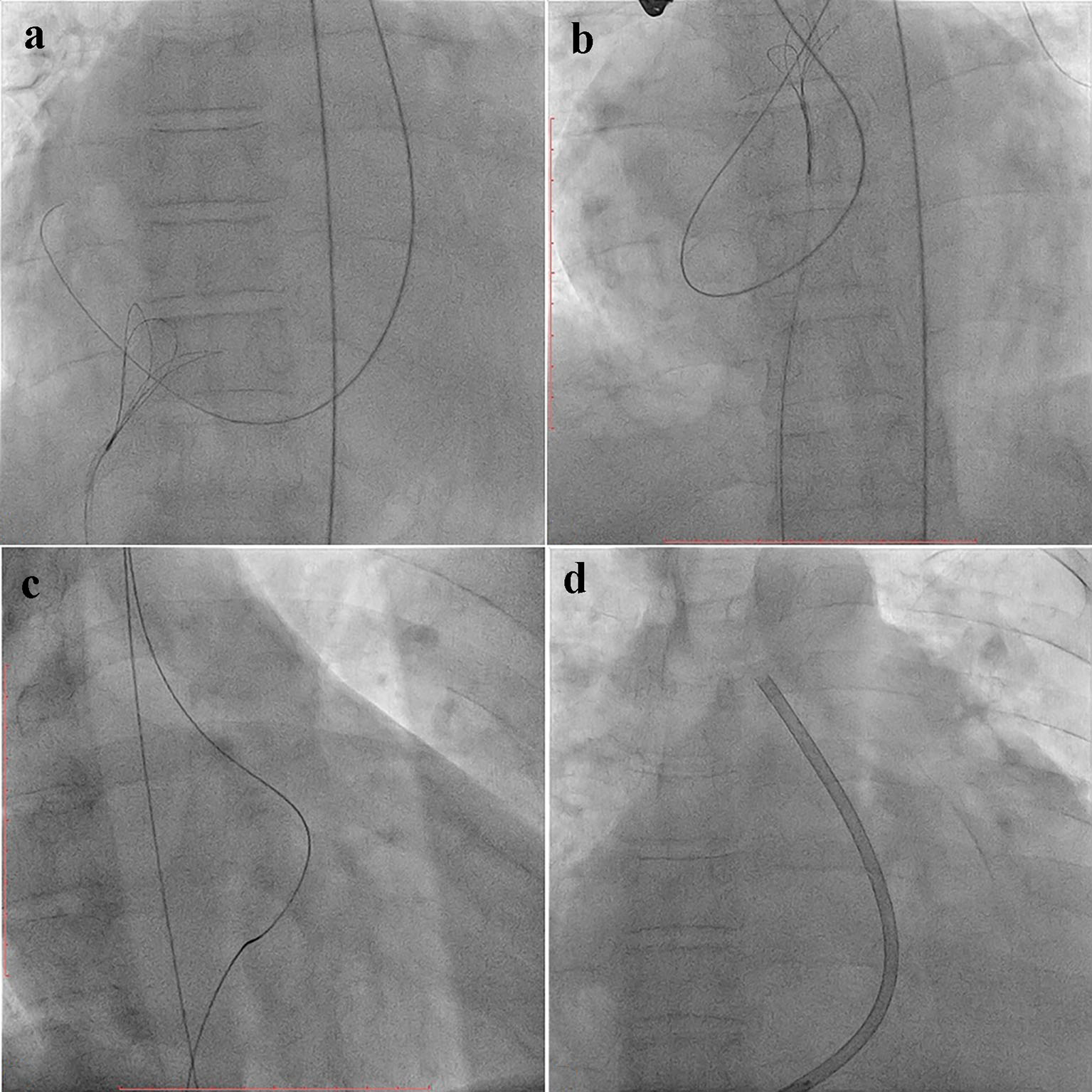

Figure 3. Fluoroscopic view showing wire being snared from right atrium (a), right ventricular outflow tract (b), arterio-venous loop (c), and delivery sheath seen into ascending aorta (d).

Click for large image

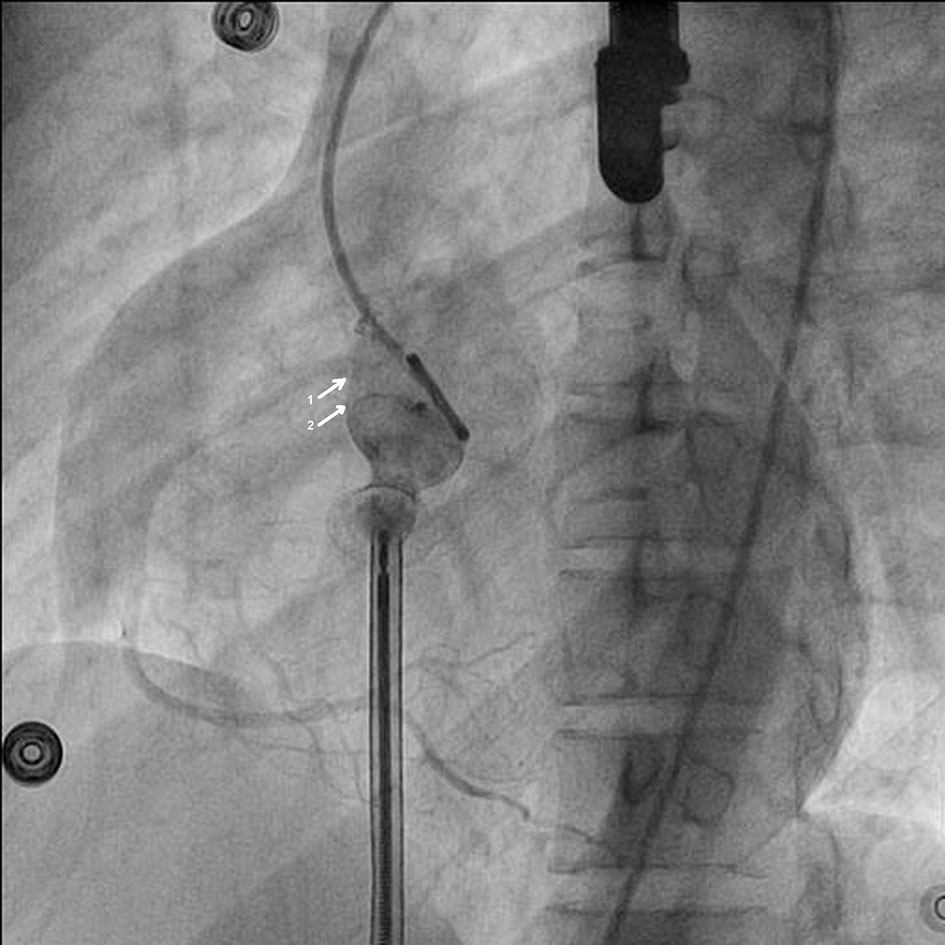

Figure 4. Aortic root angiogram showing right coronary artery arising above the defect (1); CDO attached to cable with aortic end in right coronary cusp (2).

Click for large image

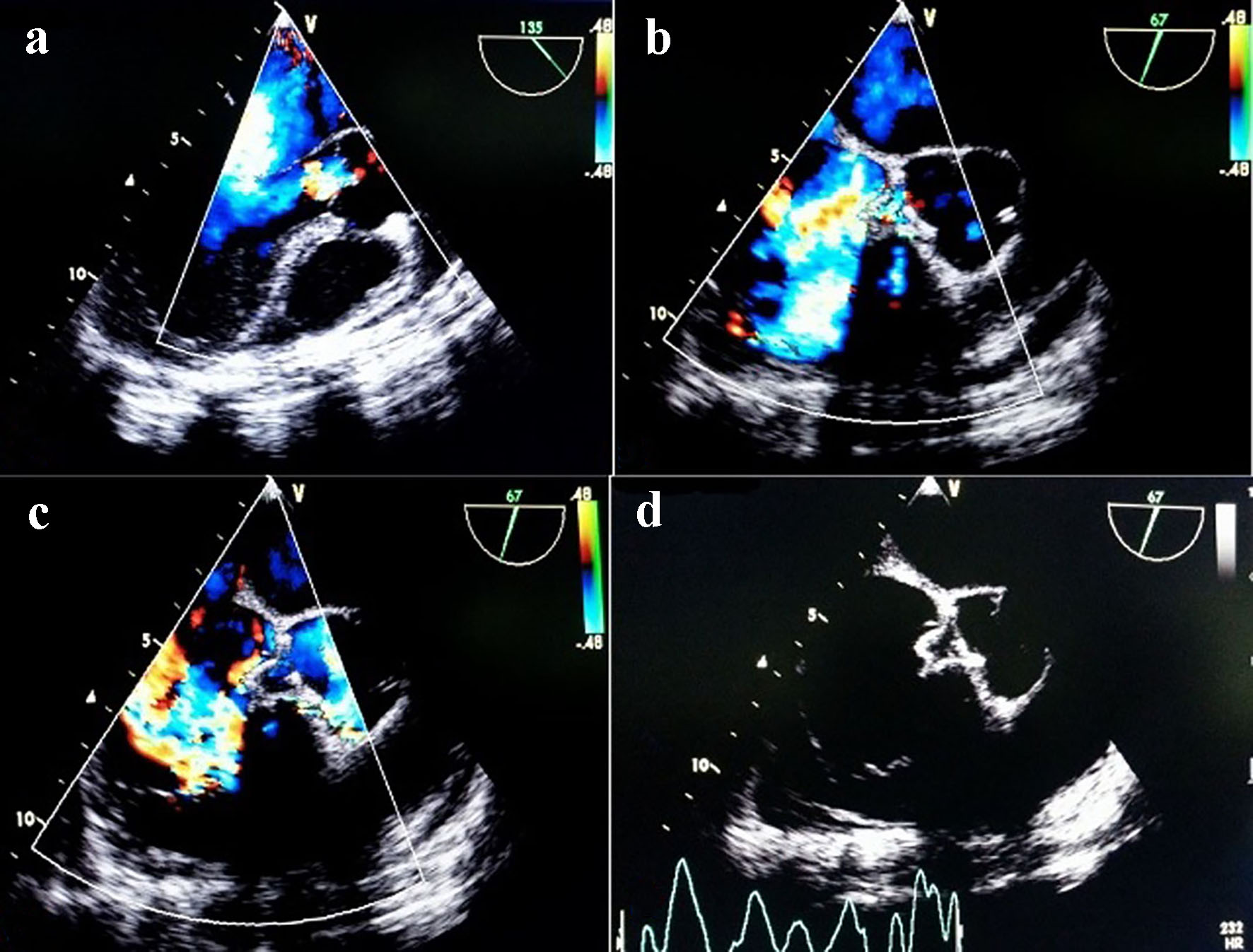

Figure 5. Periprocedural TEE to see degree of aortic leak (a); para-device leak (b); peri devise leak (c); and final position post deployment (d).

Click for large image

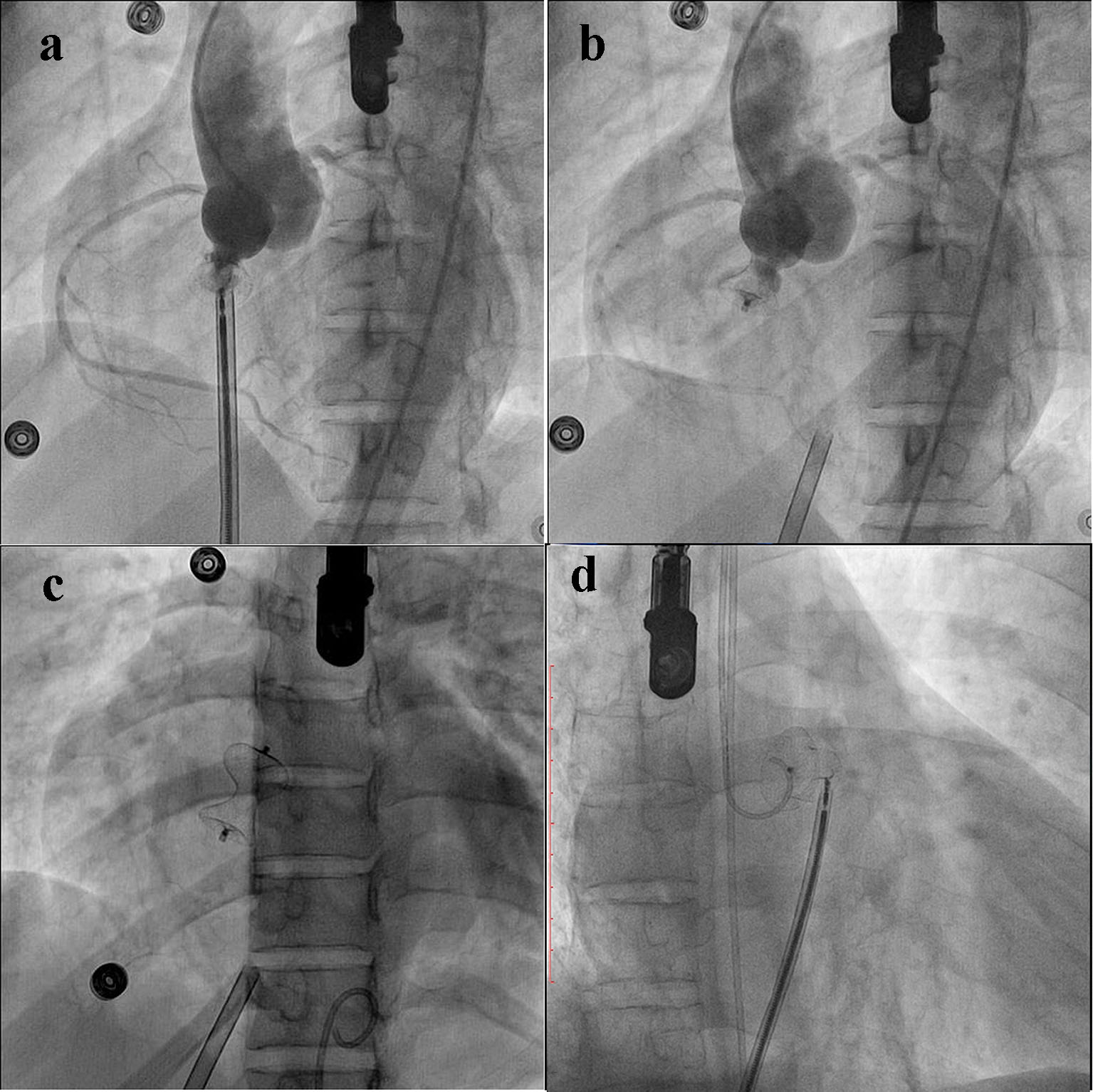

Figure 6. CDO attached to cable with aortic end in right coronary cusp (a); aortic root angiogram to confirm any residual leak (b); final position of deployed device (c); and CDO attached to cable positioned across the RSOVA from right coronary cusp opening into right ventricle (d).

The patient characteristics are summarized in Table 1. There were five males (60.3%) and three females (39.7%), with the male to female ratio of 2:1. The mean age in transcatheter group was 26.1 ± 6.9 years (median, 26.5 years). Patients were in either New York Heart Association (NYHA) class III or IV at presentation. The associated defects were bicuspid aortic valve in one patient, mild pre-existing AR in two patients, and healed infective endocarditis (IE) in one patient and right ventricular dysfunction with severe TR. All patients received adequate medical management before cardiac catheterization and device closure. Mean defect size was 13 mm (range: 9 - 17 mm; mean 9 ± 1.3 mm) which was closed with TEE assistance by CDO (range: 12/10 - 20/18 mm; median: 13/11 mm). Six of the eight patients (75%) had defects communicating between non-coronary cusp (NCC) and RA, one patient (12.5%) had between RCC and RA, and remaining one patient (12.5%) had defect communicating between RCC and RVOT. In number six patient, initially 18/16 CDO was chosen but as it was not properly anchoring the aortic end, we had to upsize by 20/18 device and completed the procedure. Others were done in single attempt thus achieving procedural success in all six patients (100%). We waited for 10" before releasing the device. Five of the eight patients (60.3%) had complete disappearance of shunt at the end of procedure while one has mild while another two had trivial residual shunt on check angiogram. On the next day, both had complete disappearance of shunt. Mild AR was present at the baseline in one of the six (16.6%) and trivial in another patient (16.7%). There was no new or worsening of pre-existing AR. Mean follow-up time was 12 months (range, 9 - 26 months; median, 12 months). All patients improved to NYHA class I. Ecosprin 75 mg was continued for 6 months in all patients.

Click to view

Table 1. Baseline Characteristics, Procedural and Follow-Up Data of Patients (n = 8)

Aneurysms of SOVA are rare, and, hence, the experience remains limited. Surgery has been the gold standard treatment for RSOVA. However, the morphological features of RSOVA make it amenable to percutaneous closure. RSOV is more common in males with mean age of rupture being third decade [4]. SVA is more often congenital than acquired in origin. Acquired causes include infective endocarditis, syphilis, trauma, connective tissue disorders, Marfan syndrome, atherosclerosis and cystic medial necrosis. SVA comes to clinical attention because of asymptomatic or symptomatic unruptured aneurysm. Patients succumb to death from congestive heart failure usually within a year after rupture if left untreated; however, longer survival after small slow perforation is well described. SVA can present in various ways such as rupture into cardiac chamber with subsequent cardiac failure, acute coronary syndrome, cardiac tamponade, heart block, aortic regurgitation and RVOT obstruction [5]. Majority of SVA arising from right coronary sinus ruptures in right ventricle and those arising from non-coronary sinus ruptures into RA [6].

The technique is similar to TCC of perimembranous VSD, although the defect is located just above the aortic valve instead of below. Periprocedural TEE and color Doppler interrogation help us in sizing the defect, device selection (2 - 4 mm larger than the aortic end), delineating the SOVA anatomy in regards to its neighboring structures namely the aortic valve, tricuspid valve, and RVOT, ensuring proper seating of the aortic disk on the aortic side without slipping into the body of the aneurysm, and most importantly, monitoring AR and TR occurrence and residual shunting on color Doppler. Although Arora et al [8] have used TTE, we believe that TEE guidance makes procedure much comfortable. Unlike Arora et al [8], we did not utilize balloon sizing of the defect since we were able to size the defect well on TEE. We attempted to close the RSOVA at the aortic end similar to a “surgeon’s repair”, not into the “windsock” as closure at the rupture site (exit point) would leave behind an aneurismal sac exposed to arterial pressure with a potential to rupture at another site in the long term [9].

TCC of RSOVA has been performed by using ADO, VSD occluder, ASD occluder, Gianturco coils and Rashkind umbrella [8-13] with variable success. Sinha et al [14] in their series of eight patients, largest till date with use of CDO had success rate of 87.5%. In their series, largest defect size was 10 mm and largest size of device was 14/12 mm and defects of 14 mm or more were referred to surgical correction. In our study, three patients (50%) had size ≥ 14 mm which were successfully interrupted with CDO and largest size of device was 20/18. Defects larger than 10 mm were closed by Guan et al using 14 - 18 mm PDA device [10]. The potential problem with the bigger device is worsening of pre-existing, development of new AR or coronary ostial pinching but we encountered none. We checked all results with the TEE as well as the concluding aortic root angiogram. We had one patient with healed IE before device implant, who is stable after 15 months of follow-up. We had procedural success of 100% and to the best of our knowledge, have used biggest CDO till date.

The CDO (Fig. 7a, b) is a surgical permanent implant. It is a platinum-coated self-expandable, mushroom-shaped device made from a Nitinol wire mesh. A mushroom-shaped retention skirt assures secure positioning at the aortic orifice of patent ductus arteriosus. The communication is closed by the introduction of thrombosis which is accomplished by multiple poly propylene patches sewn securely to the side of the device. Nanoplatinum coating provides superior bio-compatible properties compared to bare nitinol and prevents nickel leaching into the blood stream and corrosion of nitinol wire frame in long-term implants. Platinum provides better radio opacity which enables easy positioning of the device in the defect.

Click for large image

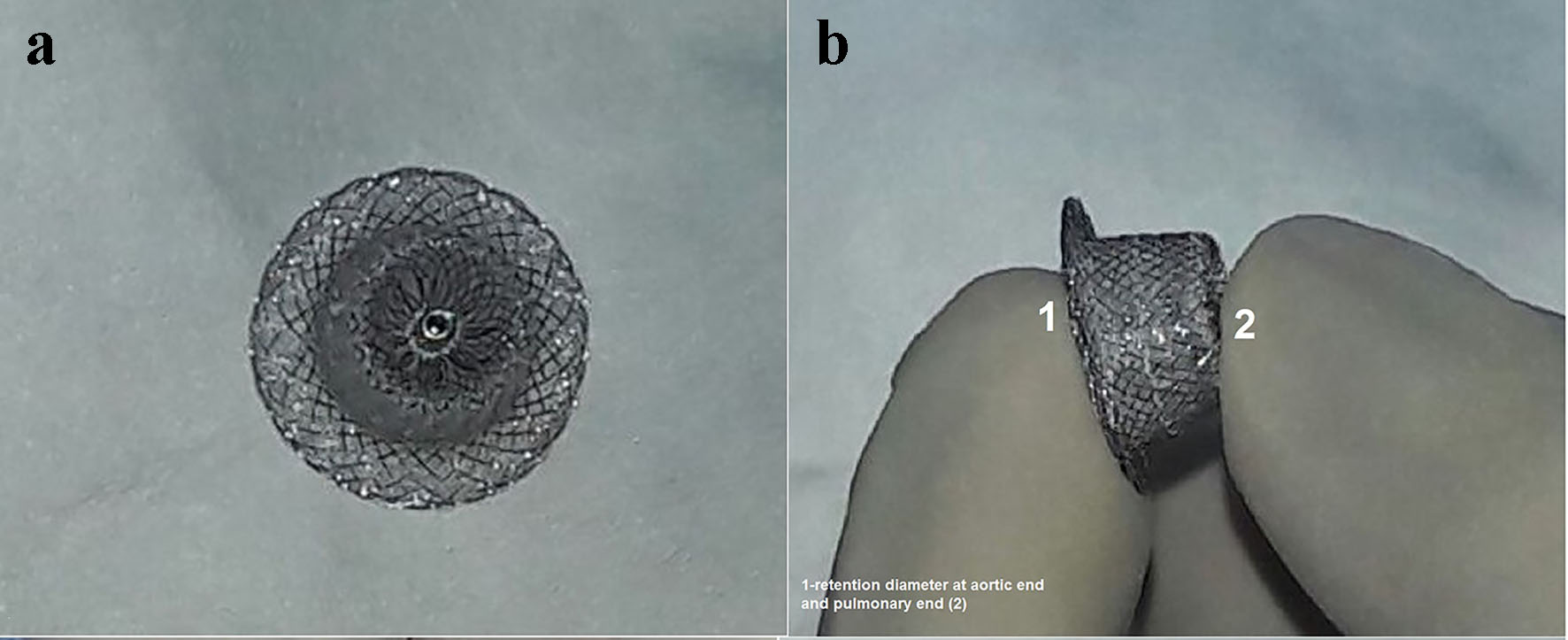

Figure 7. Cocoon duct occluder (a) and retention diameter at aortic and pulmonary end (b).

TCC of RSOVA is safe, effective and can be performed for bigger defect (> 14 mm) using CDO and is a good alternative to surgery. However, still a longer-term follow-up is needed.

Conflicts of Interest

None.

Financial Disclosure

None.

1. Kirklin JW, Barratt-Boyes BG. Congenital sinus of Valsalva aneurysm and aortic left ventricular tunnel. In: Kirklin JW, Barratt-Boyes BG, eds. Cardiac Surgery. 3rd Ed. New York: Churchill-Livingstone; 2003: p. 911-927.
2. Sakakibara S, Konno S. Congenital aneurysm of the sinus of Valsalva. Anatomy and classification. Am Heart J. 1962;63:405-424.
   doi
3. Edwards JE, Burchell HB. The pathological anatomy of deficiencies between the aortic root and the heart, including aortic sinus aneurysms. Thorax. 1957;12(2):125-139.
   doi
4. Cullen S, Somerville J, Redington A. Transcatheter closure of a ruptured aneurysm of the sinus of Valsalva. Br Heart J. 1994;71(5):479-480.
   doi pubmed
5. Rao PS, Bromberg BI, Jureidini SB, Fiore AC. Transcatheter occlusion of ruptured sinus of valsalva aneurysm: innovative use of available technology. Catheter Cardiovasc Interv. 2003;58(1):130-134.
   doi pubmed
6. Fedson S, Jolly N, Lang RM, Hijazi ZM. Percutaneous closure of a ruptured sinus of Valsalva aneurysm using the Amplatzer Duct Occluder. Catheter Cardiovasc Interv. 2003;58(3):406-411.
   doi pubmed
7. Kerkar P, Suvarna T, Burkule N, Panda R. Transcatheter closure of ruptured sinus of Valsalva aneurysm using the Amplatzer duct occluder in a critically ill post-CABG patient. J Invasive Cardiol. 2007;19(6):E169-171.
   pubmed
8. Arora R, Trehan V, Rangasetty UM, Mukhopadhyay S, Thakur AK, Kalra GS. Transcatheter closure of ruptured sinus of valsalva aneurysm. J Interv Cardiol. 2004;17(1):53-58.
   doi pubmed
9. Kerkar PG, Lanjewar CP, Mishra N, Nyayadhish P, Mammen I. Transcatheter closure of ruptured sinus of Valsalva aneurysm using the Amplatzer duct occluder: immediate results and mid-term follow-up. Eur Heart J. 2010;31(23):2881-2887.
   doi pubmed
10. Guan L, Zhou D, Zhang F, Pan W, Dong L, Chen H, Ge J. Percutaneous device closure of ruptured sinus of valsalva aneurysm: a preliminary experience. J Invasive Cardiol. 2013;25(10):492-496.
    pubmed
11. Chang CW, Chiu SN, Wu ET, Tsai SK, Wu MH, Wang JK. Transcatheter closure of a ruptured sinus of valsalva aneurysm. Circ J. 2006;70(8):1043-1047.
    doi pubmed
12. Zhao SH, Yan CW, Zhu XY, Li JJ, Xu NX, Jiang SL, Xu ZY, et al. Transcatheter occlusion of the ruptured sinus of Valsalva aneurysm with an Amplatzer duct occluder. Int J Cardiol. 2008;129(1):81-85.
    doi pubmed
13. Sen S, Chattopadhyay A, Ray M, Bandyopadhyay B. Transcatheter device closure of ruptured sinus of Valsalva: Immediate results and short term follow up. Ann Pediatr Cardiol. 2009;2(1):79-82.
    doi pubmed
14. Sinha SC, Sujatha V, Mahapatro AK. Percutaneous transcatheter closure of ruptured sinus of valsalva aneurysm: immediate result and long-term follow-up. Int J Angiol. 2015;24(2):99-104.
    doi pubmed
