Cardiol Res
Cardiology Research, ISSN 1923-2829 print, 1923-2837 online, Open Access
Article copyright, the authors; Journal compilation copyright, Cardiol Res and Elmer Press Inc
Journal website https://www.cardiologyres.org

Original Article

Volume 12, Number 6, December 2021, pages 335-339


Effect of Statin Treatment in Patients With Advanced Carotid Atherosclerosis: An Observational Outcome Study

Ansgar Adamsa, d, Waldemar Bojarab, Michel Romanensc

aBAD Gesundheitsvorsorge und Sicherheitstechnik GmbH Zentrum Koblenz, Koblenz, Germany
bMedizinische Klinik Kardiologie Koblenz, Gemeinschaftsklinikum Kemperhof II, Koblenz, Germany
cVascular Risk Foundation (Varifo), Olten, Switzerland
dCorresponding Author: Ansgar Adams, BAD Health Care and Safety Technology Centre GmbH, Koblenz, Germany

Manuscript submitted August 22, 2021, accepted October 4, 2021, published online November 5, 2021
Short title: Statin in Advanced Carotid Atherosclerosis
doi: https://doi.org/10.14740/cr1318

Abstract▴Top

Background: Advanced atherosclerosis of the carotid artery is associated with a high risk of cardiovascular disease. The aim of the study was to investigate whether treatment with statins improved the prognosis.

Methods: Sum of all plaque areas (total plaque area (TPA)) and the maximum plaque thickness were determined in healthy subjects using ultrasound. We compared the outcome in subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding) with and without statin treatment. The follow-up was recorded during follow-up examinations as part of preventive occupational health examinations or by personal communication.

Results: In 7,106 subjects aged 35 - 65 years (50 ± 8 years, 43% women), we found 669 subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding). A follow-up was available for 640 (95.4%) subjects. In these subjects (54 ± 8 years, 20.4% women), 94 (88 men) had cardiovascular events (35 myocardial infarctions, 13 bypass operations, 32 stent implantations, and 14 strokes) with a mean follow-up time of 3.9 (1 - 12) years. Two hundred sixty subjects were treated with a statin, while 339 received no statin. Fourteen cardiovascular events occurred in the treated group (eight stent implantations, two heart attacks, two bypass operations, and two strokes). In the untreated group, 80 cardiovascular events occurred (12 strokes, 11 bypass operations, 33 heart attacks, and 24 stent implantations). The event rate was 5.4% for the subjects treated with a statin and 23.6% for the untreated subjects. Both groups were well matched for the baseline presence of cardiovascular risk factors.

Conclusion: Statin treatment in subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding on ultrasound) significantly improves the prognosis in a non-randomized observational cohort study.

Keywords: Total plaque area; Carotid ultrasound; Cardiovascular risk; Coronary disease

Introduction▴Top

It is known from previous studies that advanced atherosclerosis of the carotid artery is associated with an increased risk of cardiovascular disease [1-8]. By measuring all plaque areas (total plaque area (TPA)) and the maximum plaque thickness on the carotid artery, people with a high cardiovascular risk can be identified [9-11]. The examination method was validated by measuring the TPA and the maximum plaque thickness in 500 patients 1 day before a planned coronary angiography regardless of the indication. Four types could be defined in the ultrasound.

With a type III and IV b carotid plaque on ultrasound, we found the presence of coronary heart disease defined by a coronary angiogram in 82.2% [9].

Materials and Methods▴Top

In 4,076 healthy men and 3,030 healthy women aged 35 - 65 years, the sum of all plaque areas (TPA) and the maximum plaque thickness were determined in an occupational medical setting using ultrasound. A transportable ultrasound device from Kontron Medical, type Imagic Agile, with a 10 MHz linear transducer was used. The measurement method was carried out as previously published [9, 10]. A low risk corresponds to a type I and type II a finding on ultrasound, an intermediate risk to a type II b and IV a finding and a high risk to a type III and IV b finding [11]. All subjects with a type III or IV b finding received a recommendation for their family doctor to initiate a therapy with a statin.

We compared the outcome in subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding) with and without statin treatment. The follow-up was recorded during follow-up examinations as part of preventive occupational health examinations. The evaluation of all investigations was carried out with the approval of the responsible ethics committee. This study was conducted in compliance with the ethical standards of the responsible institution on human subjects as well as with the Helsinki Declaration.

As part of their occupational health check-ups, we asked patients to inform us about the occurrence of cardiovascular events (myocardial infarction, percutaneous transluminal coronary angioplasty (PTCA), bypass surgery (CABG) or stroke). Whenever possible we received clinical records from treating physicians. It was investigated whether statin treatment in subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding on ultrasound) leads to an improvement in the prognosis. Statin users reported statin use on a daily level during the whole follow-up time. Statin non-users were not prescribed statins during the whole observation time. There were no sporadic statin users. Effect of statins on low-density lipoprotein (LDL) cholesterol was not available. Further, we did not record changes in other cardiovascular risk factors such as smoking, hypertension, or new onset of diabetes mellitus. Further, we obtained a follow-up in some patients without high-risk carotid plaque.

Results▴Top

Type III and IV b findings were found in 669 subjects (135 women). A follow-up was available for 640 (95.5%) subjects. In these subjects (54 ± 8 years, 20.4% women), 94 (88 men) had cardiovascular events (35 myocardial infarctions, 13 bypass operations, 32 stent implantations, and 14 strokes), with a mean follow-up time of 3.9 (1 - 12) years. Two hundred sixty subjects were treated with a statin, while 339 received no statin. No data on statin treatment were available for 41 subjects. These were excluded. The baseline data were almost the same in both groups, especially the Prospective Cardiovascular Munster Study for Fatal and Non-Fatal Myocardial Infarction (PROCAM) risk (P = 0.7425).

Table 1 shows the clinical baseline characteristics of both groups.

Table 1.
Click to view
Table 1. Baseline Characteristics of All Subjects With Type III and IV b Finding in Ultrasound


Fourteen cardiovascular events occurred in the treated group (eight stent implantations, two heart attacks, two bypass operations, and two strokes). In the untreated group, 80 cardiovascular events occurred (12 strokes, 11 bypass operations, 33 heart attacks, and 24 stent implantations). The event rate was 5.4% for the subjects treated with a statin and 23.6% for the untreated subjects. Nine patients died of a heart attack, and three of stroke (11 were not treated with a statin).

In the low-risk group (type I, II a, n = 5,712), follow-up was complete in 34.6% of subjects with a mean follow-up time of 4.9 years (1 - 12 years), and there were 11 cardiovascular events (eight myocardial infarctions, two bypass operations, and one stent implantation). In the intermediate-risk group (type IIb, IV a, n = 725), follow-up was complete in 47.3% of subjects with a mean follow-up time of 4.3 years (1 - 12 years), and 10 cardiovascular events occurred (three myocardial infarctions, three bypass operations, two stent implantations, and two strokes), with one death [10]. Figure 1 shows unadjusted event prediction results for type III-IV b finding in ultrasound with and without statin therapy.


Click for large image

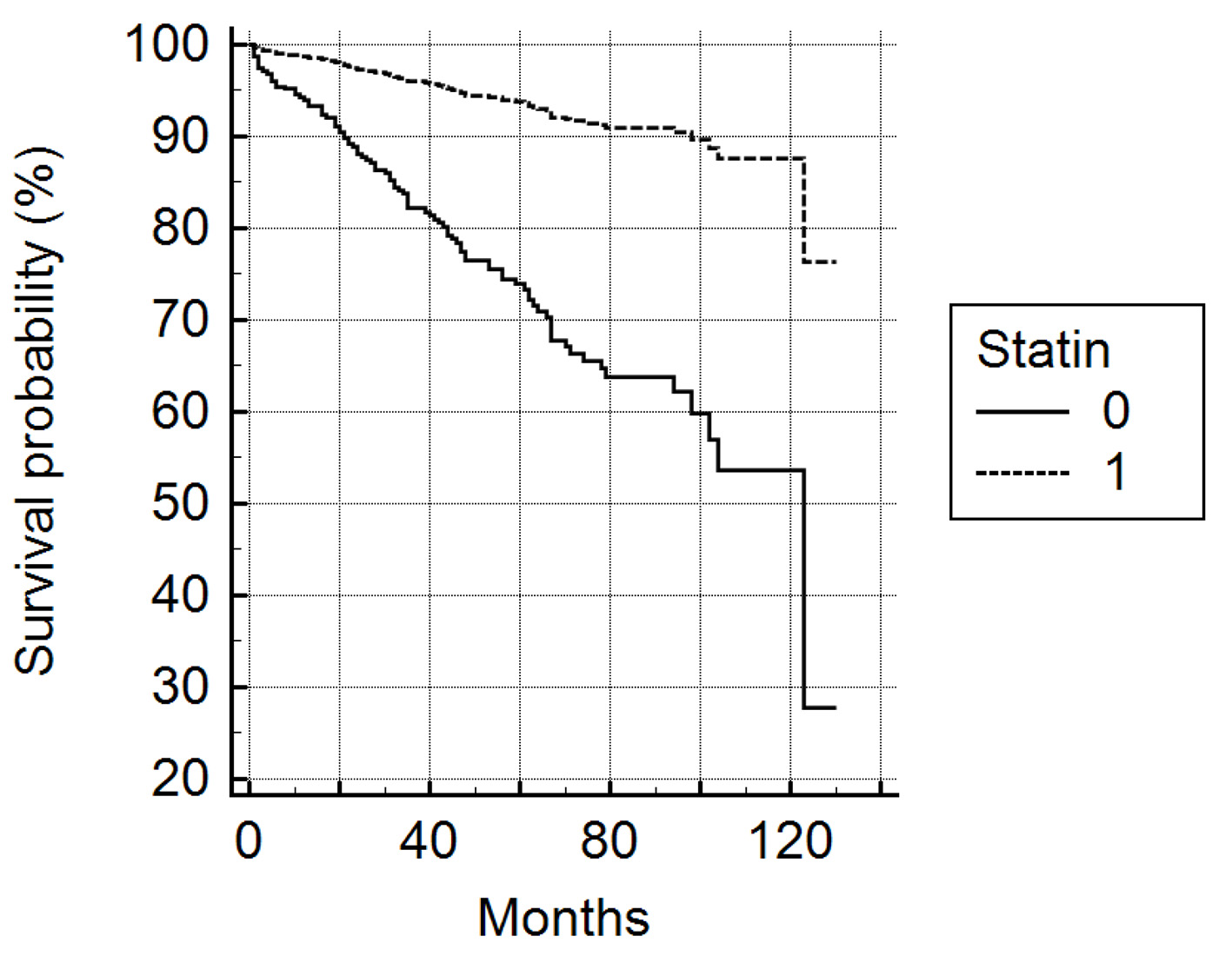

Figure 1. Unadjusted HRs for primary outcome (all events) associated with advanced atherosclerosis on carotid artery (type III-IV b finding) as a function of statin use. HR: hazard ratio. P < 0.0001
Discussion▴Top

Atherosclerosis is an inflammatory disease of the arteries and continues to be the most common cause of death in industrialized nations.

Fatty streaks can be found in arteries already at the age of 20 years, and progression of atherosclerosis often remains undetected until clinical events such as acute coronary syndrome (ACS), chronic coronary syndrome (CCS), apoplexy, and peripheral artery disease (PAD) occur.

Because traditional risk equations such as PROCAM or SCORE show frequently low risk in patients with advanced carotid atherosclerosis [12], it is important to identify and treat advanced carotid atherosclerosis, a surrogate for cardiovascular risk, in the subclinical stage. We found advanced carotid atherosclerosis in 9% of subjects at baseline and in these, 55.2% had a PROCAM risk below 10%. Therefore, PROCAM, at least in patients aged 35 - 65 years, does not appear to reliably identify high-risk patients defined by extensive carotid plaque formation.

Both the ESC Guidelines on Cardiovascular Disease Prevention in Clinical Practice of 2016 and the ESC Guidelines for the Management of Dyslipidemia 2019 [13, 14] classify people with carotid plaques as having a very high risk, but without quantifying the plaque burden.

There are several plaque studies that show that advanced atherosclerosis of the carotid artery with high TPA is associated with a high risk of events (Tromso study, BioImage study, CAVES-CAVA study, Spence 2002, MESA study, NOMAS study, Adams 2020, and ARCO study 2021 [1-11]) and therapy with statins improves the prognosis [8, 15-19].

As early as 2010, Spence formulated “Treating arteries instead of risk factors. A paradigm change in management of atherosclerosis” [15]. Our results are consistent with these studies and support the paradigm shift formulated by Spence.

Although this is not a randomized study, the results suggest that patients with advanced atherosclerosis (type III, IV b finding) should be treated with a statin, eventually regardless of the level of LDL cholesterol in line with the postulate “treating arteries instead of risk factors”.

Conclusions

Statin treatment in subjects with advanced atherosclerosis of the carotid artery (type III-IV b finding on ultrasound) significantly improved prognosis as assessed by our observational cohort study. Since most patients with advanced carotid atherosclerosis have a low PROCAM risk, statin intervention is unlikely to be tailored correctly to patients who would derive the largest prognostic benefits from preventive therapy.

Acknowledgments

None to declare.

Financial Disclosure

This study has not been supported by any external funding.

Conflict of Interest

The authors declare that there is no conflict of interest.

Informed Consent

All patients provided informed consent.

Author Contributions

WB and MR discussed the approach and the findings of this study with AA intensively, and gave AA valuable feedback. All examinations have been done by AA.

Data Availability

Any inquiries regarding supporting data availability of this study should be directed to the corresponding author.

Abbreviations

TPA: total plaque area (carotid plaque); PROCAM: Prospective Cardiovascular Munster Study for Fatal and Non-Fatal Myocardial Infarction


References▴Top
  1. Belcaro G, Nicolaides AN, Ramaswami G, Cesarone MR, De Sanctis M, Incandela L, Ferrari P, et al. Carotid and femoral ultrasound morphology screening and cardiovascular events in low risk subjects: a 10-year follow-up study (the CAFES-CAVE study(1)). Atherosclerosis. 2001;156(2):379-387.
    doi
  2. Johnsen SH, Mathiesen EB, Joakimsen O, Stensland E, Wilsgaard T, Lochen ML, Njolstad I, et al. Carotid atherosclerosis is a stronger predictor of myocardial infarction in women than in men: a 6-year follow-up study of 6226 persons: the Tromso Study. Stroke. 2007;38(11):2873-2880.
    doi pubmed
  3. Mathiesen EB, Johnsen SH, Wilsgaard T, Bonaa KH, Lochen ML, Njolstad I. Carotid plaque area and intima-media thickness in prediction of first-ever ischemic stroke: a 10-year follow-up of 6584 men and women: the Tromso Study. Stroke. 2011;42(4):972-978.
    doi pubmed
  4. Inaba Y, Chen JA, Bergmann SR. Carotid plaque, compared with carotid intima-media thickness, more accurately predicts coronary artery disease events: a meta-analysis. Atherosclerosis. 2012;220(1):128-133.
    doi pubmed
  5. Rundek T, Arif H, Boden-Albala B, Elkind MS, Paik MC, Sacco RL. Carotid plaque, a subclinical precursor of vascular events: the Northern Manhattan Study. Neurology. 2008;70(14):1200-1207.
    doi pubmed
  6. Baber U, Mehran R, Sartori S, Schoos MM, Sillesen H, Muntendam P, Garcia MJ, et al. Prevalence, impact, and predictive value of detecting subclinical coronary and carotid atherosclerosis in asymptomatic adults: the BioImage study. J Am Coll Cardiol. 2015;65(11):1065-1074.
    doi pubmed
  7. Romanens M, Adams A, Sudano I, Bojara W, Balint S, Warmuth W, Szucs TD. Prediction of cardiovascular events with traditional risk equations and total plaque area of carotid atherosclerosis: The Arteris Cardiovascular Outcome (ARCO) cohort study. Prev Med. 2021;147:106525.
    doi pubmed
  8. Spence JD, Eliasziw M, DiCicco M, Hackam DG, Galil R, Lohmann T. Carotid plaque area: a tool for targeting and evaluating vascular preventive therapy. Stroke. 2002;33(12):2916-2922.
    doi pubmed
  9. Adams A, Bojara W. [Prediction of coronary artery stenosis by measurement of total plaque area and thickness versus intima media thickness of the carotid artery]. Herz. 2015;40(5):817-822.
    doi pubmed
  10. Adams A, Bojara W, Schunk K. Early diagnosis and treatment of coronary heart disease in asymptomatic subjects with advanced vascular atherosclerosis of the carotid artery (Type III and IV b Findings Using Ultrasound) and risk factors. Cardiol Res. 2018;9(1):22-27.
    doi pubmed
  11. Adams A, Bojara W, Romanens M. The determination of the plaque burden on the carotid artery with ultrasound significantly improves the risk prediction in middle-aged subjects compared to PROCAM: an outcome study. Cardiol Res. 2020;11(4):233-238.
    doi pubmed
  12. Romanens M, Mortensen MB, Sudano I, Szucs T, Adams A. Extensive carotid atherosclerosis and the diagnostic accuracy of coronary risk calculators. Prev Med Rep. 2017;6:182-186.
    doi pubmed
  13. Piepoli MF, Hoes AW, Agewall S, Albus C, Brotons C, Catapano AL, Cooney MT, et al. 2016 European Guidelines on cardiovascular disease prevention in clinical practice: The Sixth Joint Task Force of the European Society of Cardiology and Other Societies on Cardiovascular Disease Prevention in Clinical Practice (constituted by representatives of 10 societies and by invited experts)Developed with the special contribution of the European Association for Cardiovascular Prevention & Rehabilitation (EACPR). Eur Heart J. 2016;37(29):2315-2381.
    doi pubmed
  14. Mach F, Baigent C, Catapano AL, Koskinas KC, Casula M, Badimon L, Chapman MJ, et al. 2019 ESC/EAS Guidelines for the management of dyslipidaemias: lipid modification to reduce cardiovascular risk. Eur Heart J. 2020;41(1):111-188.
    doi pubmed
  15. Spence JD, Hackam DG. Treating arteries instead of risk factors: a paradigm change in management of atherosclerosis. Stroke. 2010;41(6):1193-1199.
    doi pubmed
  16. Korcarz CE, DeCara JM, Hirsch AT, Mohler ER, Pogue B, Postley J, Tzou WS, et al. Ultrasound detection of increased carotid intima-media thickness and carotid plaque in an office practice setting: does it affect physician behavior or patient motivation? J Am Soc Echocardiogr. 2008;21(10):1156-1162.
    doi pubmed
  17. Naslund U, Ng N, Lundgren A, Fharm E, Gronlund C, Johansson H, Lindahl B, et al. Visualization of asymptomatic atherosclerotic disease for optimum cardiovascular prevention (VIPVIZA): a pragmatic, open-label, randomised controlled trial. Lancet. 2019;393(10167):133-142.
    doi
  18. Spence JD, Coates V, Li H, Tamayo A, Munoz C, Hackam DG, DiCicco M, et al. Effects of intensive medical therapy on microemboli and cardiovascular risk in asymptomatic carotid stenosis. Arch Neurol. 2010;67(2):180-186.
    doi pubmed
  19. Spence JD. Stroke prevention: a lifetime of lessons. Stroke. 2020;51(7):2255-2262.
    doi pubmed


This article is distributed under the terms of the Creative Commons Attribution Non-Commercial 4.0 International License, which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
