Diagnostic Approach to Myocarditis Mimicking Myocardial Infarction at Initial Presentation

Myocarditis is an inflammatory process of the myocardium, which has variable manifestations. The most difficult aspect of this disease process is the diagnosis on initial presentation. Myocardial biopsy is the gold standard [1], and can play a crucial role in the diagnostic and prognostic evaluation of myocarditis. However, because of its low sensitivity and invasive approach, it is only indicated in certain clinical scenarios [1]. Various other diagnostic approaches have been investigated, including the use of cardiac magnetic resonance imaging (MRI) solely and in conjunction with a myocardial biopsy. Evidence-based conclusions have shown great improvement in the outcomes of such protocols. This report discusses a case in which myocarditis had a mixed presentation, which led to a delayed diagnosis. Ultimately, the patient was spared a myocardial biopsy and was given a presumptive diagnosis of myocarditis based on the clinical picture and cardiac MRI.

A 35-year-old male with no significant past medical history presented to our institution from an outside hospital with a 12-h history of sudden-onset crushing chest pain, described as 9/10 in severity. The pain started at around 3:00 am, while the patient was lying in bed watching television. He stated that the pain radiated bilaterally and was associated with profuse diaphoresis, nausea and vomiting. He took two tablets of ibuprofen (200 mg) with minor improvement and slept until the afternoon, when he was awakened by a new episode of severe chest pain and diaphoresis. He then presented to the emergency department.

In the emergency room, an electrocardiogram (EKG) documented ST segment elevation in lead I and aVL, and ST segment depression in lead III (Fig. 1). Preliminary lab work revealed a troponin T level of 25 ng/mL. A chest X-ray was also obtained and showed mild cardiomegaly, in the absence of additional pathological findings (Fig. 2). The patient was therefore transferred to our institution for further evaluation and possible emergent catheterization.

Click for large image

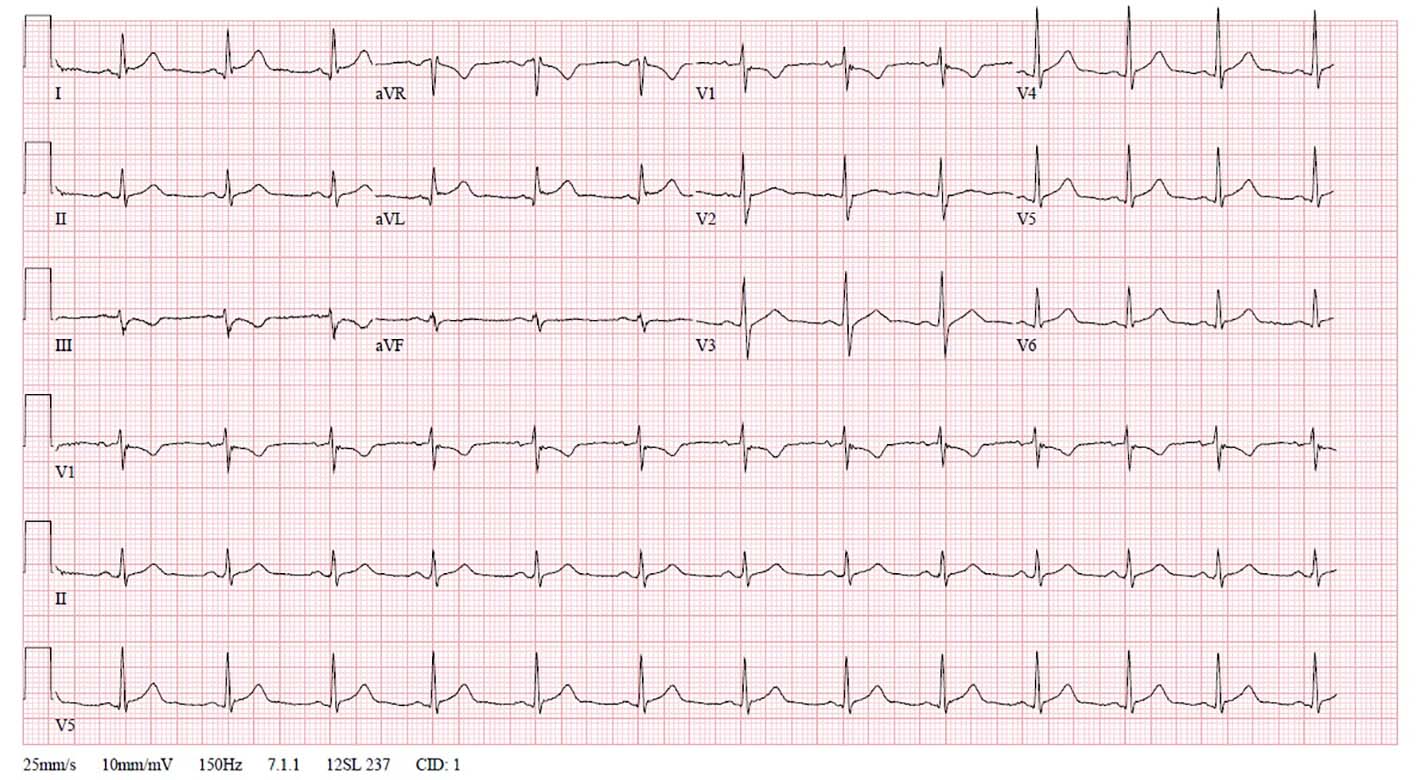

Figure 1. Electrocardiogram of presenting patient acquired upon arrival in the emergency department. Illustrative of ST elevation in lead I and aVL, and ST depression in lead III.

Click for large image

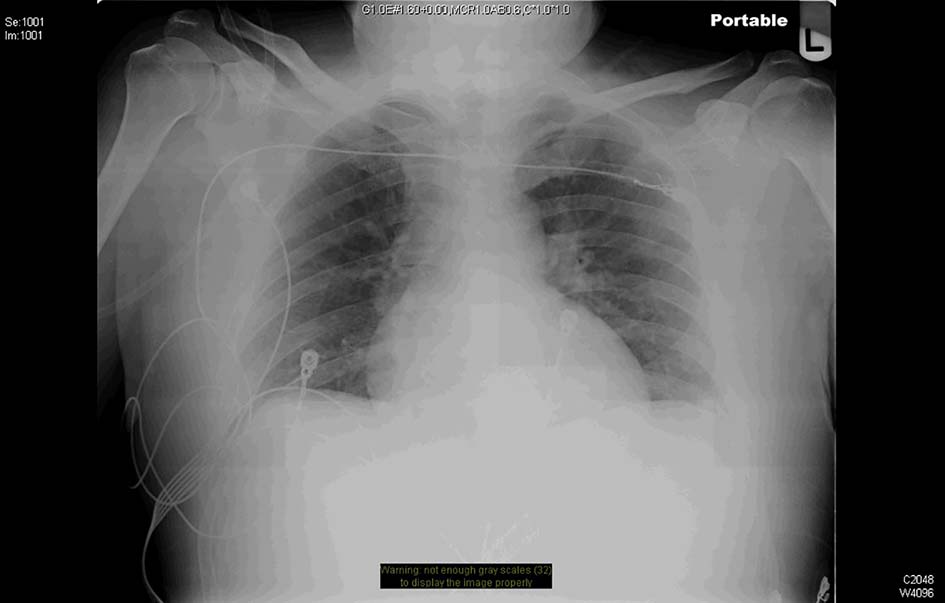

Figure 2. Chest X-ray obtained on arrival in the emergency department.

Upon arrival to our hospital, repeat lab work showed a troponin level of 21.8 ng/mL, CK-MB of 77 ng/mL, creatinine of 0.6 mg/dL, Hb of 12.6 g/dL, WBC count of 7,300/µL and a C-reactive protein level of 131 mg/L. The patient was taken for an emergent left heart catheterization, which was conclusive for normal coronary arteries. A ventriculogram was also performed and revealed a left ventricular ejection fraction (LVEF) of approximately 45% with mild hypokinesis of the antero-apical and infero-apical walls. Consequently, the patient was admitted to the coronary care unit (CCU) for further management.

On arrival to the CCU, the patient’s vitals were found to be unremarkable. The patient was afebrile with blood pressure measurement of 117/72 mm Hg, pulse 77 beats/min, respiratory rate 20 breaths/min and an oxygen saturation of 100%. Patient’s height and weight were measured 65 inches and 187 pounds, respectively. The patient’s physical examination was largely unremarkable. More specifically, the patient did not show any signs of jugular venous distention, thyromegaly, or a carotid bruit. Cardiac auscultation revealed a regularly regular rhythm of the heart, with a normal S1/S2 and void of extra cardiac sounds and rubs, murmurs or thrills. There was no chest wall tenderness. Lungs were clear to auscultation bilaterally and no rales, rhonchi or wheezing could be appreciated. The abdomen was soft to palpation, non-tender, non-distended, with no evidence of guarding or rebound pain. Upon examination of the extremities, the patient did not show any evidence of dependent edema.

Social history was significant for a 5 pack-year history of smoking cigarettes, although the patient had quit smoking 5 years prior to this presentation. He denied any use of alcohol or illicit drugs and his family history was non-contributory. He also denied any prior medical condition, the use of any over-the-counter and/or prescribed medications.

Further questioning in the CCU disclosed that the patient had experienced a fever and profuse sweating in the absence of any other symptoms 4 days prior to the onset of the presenting chest pain. Due to the high suspicion of myocarditis, a cardiac MRI and pertinent serology tests were ordered. Cardiotropic viruses including parvovirus B19, human herpes virus 6, human immunodeficiency virus-1, hepatitis B virus, Epstein-Barr virus, cytomegalovirus, influenza virus B, adenovirus and Coxsackie virus were not detected in the peripheral blood. Borrelia, rickettsia and legionella serology were also negative. Blood cultures did not yield bacteria or fungal growth.

Cardiac MRI furnished evidence that the left and right ventricles were both normal in size and in systolic function. Likewise, there was no evidence of segmental wall motion abnormalities for either ventricle. T2-weighted imaging showed no evidence of myocardial edema or intra-myocardial iron deposition. However, on delayed enhancement imaging, there was sub-epicardial enhancement in the basal to mid inferior, inferolateral and anterolateral segments, as well as in the apical inferior and lateral segments in a pattern which was most consistent with myocarditis (Fig. 3).

Click for large image

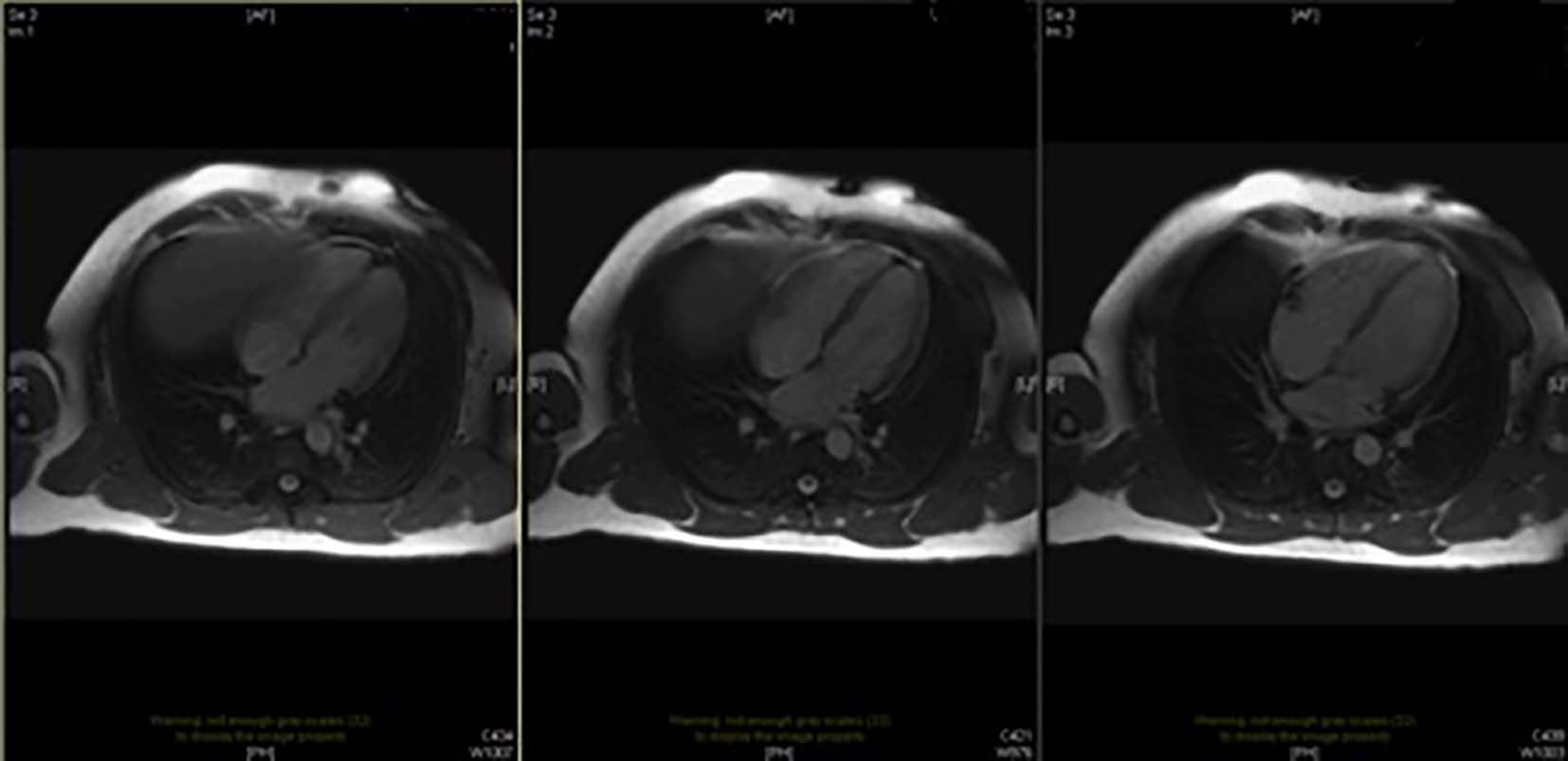

Figure 3. Cardiac MRI of adenosine stress with contrast. MRI results show indication of subepicardial scarring suggesting myocarditis.

The patient was discharged with the diagnosis of idiopathic myocarditis, and was advised bed rest along with supplemental home oxygen.

Myocarditis can present with a variable clinical picture and diagnosis at initial presentation can often be a challenge. Myocarditis may mimic myocardial ischemia both clinically and electrocardiographically, which is particularly evident in younger patients [2]. Additionally, there are many instances in which symptomatic cases of myocarditis present with a syndrome of heart failure or dilated cardiomyopathy [3]. Chest pain is typically associated with concomitant pericarditis. Myocarditis may also present with unexpected sudden death, presumably due to ventricular arrhythmias.

Acute myocarditis should be suspected whenever a patient, especially a younger patient, presents with new onset of cardiac abnormalities otherwise unexplained, such as heart failure, cardiac arrhythmias, or conduction disturbances [2]. A history of recent upper respiratory infection or enteritis may also be elicited in the majority of viral myocarditis cases [4].

Furthermore, there are several other settings in which the diagnosis of myocarditis should be considered. Firstly, in cases where systemic infections (viral, bacterial, rickettsial, fungal or parasitic) are associated with new abnormalities in cardiovascular function. Since many cardiotropic viruses including Coxsackie A are also myotropic, the concurrent presence of myalgia should enhance the suspicion of myocarditis [5]. Secondly, cases in which acute viral infections are accompanied by tachycardia out of proportion to fever. Myocarditis should also be considered when a patient, especially a young patient, presents with clinical signs and symptoms of an acute myocardial infarction with a normal coronary angiogram. And lastly, cases in which a patient develops symptoms of heart failure associated with rash and eosinophilia following a new drug or vaccine.

The diagnosis of myocarditis is particularly difficult because an established non-invasive gold standard does not exist. Furthermore, sensitivity of the current invasive gold standard which is endomyocardial biopsy (EMB) [1] is very low due to the variability in interpretation and sampling error [6]. Another diagnostic mean, cardiac MRI, is useful to diagnose epicardial and mid wall inflammation and edema in patients who would have a low yield from right ventricular EMB [7]. Therefore, although histology remains the gold standard, low-risk patients are often given a presumptive diagnosis of myocarditis, if the clinical presentation and imaging studies are suggestive. As shown in a recent similar case report by Zhang et al, EKG, coronary angiography and cardiac MRI were used in combination for the diagnosis of viral myocarditis without a myocardial biopsy [8].

The EKG findings in myocarditis vary considerably. Sinus tachycardia and non-specific T wave and ST segment changes are most common. Occasionally, the changes may include ST-segment elevation or depression, and pathologic Q waves [9]. Rhythmic disturbances, such as supraventricular and ventricular arrhythmias or atrial and ventricular conduction delays, may appear secondary to myocardial inflammation. High grade heart block is infrequent, and is more common in Lymeʼs disease, cardiac sarcoidosis and idiopathic giant cell myocarditis [10].

Virus serology for cardiotropic viruses such as Coxsackie virus is commonly used in clinical practice to aid in the diagnosis of myocarditis. However, such serological tests are known to have poor sensitivity, and evidence regarding their clinical utility is lacking [1, 11]. A negative viral serological profile does not rule out a diagnosis of myocarditis. In a recent study of 124 patients with suspected myocarditis, viral serology was found to have no relevance in the diagnosis of viral myocarditis [11]. Detection of acute viral infection via serological tests was shown to have no co-relation with viral genome detection in EMB in the study patients. Furthermore, routine detection for viral genome in EMB has not been recommended in international guidelines [1].

Use of cardiac MRI is growing in the diagnosis of myocarditis, and some studies show that it may help with prognostication as well. There are three pertinent characteristics of cardiac MRI that propel it to the forefront diagnostic tool of myocarditis. Firstly, cardiac MRI allows for the examiner to assess cardiac function indirectly [12]. There is an inverse relationship between the degree of inflammation present and the residual cardiac function. This is supported by one study in particular, which assessed 19 patients, who presented with a strong pre-test probability for myocarditis. The results showed there was an observable association between myocardial involvement on cardiac MRI and the cardiac function [13].

Another factor in support of the role of MRI for diagnosis of myocarditis is the help provided by cardiac MRI in directing myocardial biopsy. The sensitivity of myocardial biopsy is largely limited by its off-target sampling. There is evidence-based support that myocardial biopsy’s yield improves significantly in conjunction with cardiac MRI. This is exemplified in one study of 32 patients with a substantial probability of myocarditis that underwent gadolinium-enhanced cardiac MRI prior to myocardial biopsy. Biopsy was taken in both the regions of foci detected on cardiac MRI and outside the regions. It was concluded that 19 out of the 21 patients that underwent myocardial biopsy in the active regions were found to have active myocarditis present on biopsy. Yet, when myocardial biopsy was performed outside the image detected regions, a conclusive diagnosis of active myocarditis was reached in only one out of 11 patients [7].

Lastly, cardiac MRI can help differentiate myocarditis from ischemic cardiomyopathy, and can also aid in diagnosing the culprit virus. For example, patients who present with a case of myocarditis have characteristic epicardial and myocardial involvement, whereas ischemic cardiomyopathy patients tend to present with involvement of the endocardium. The use of cardiac MRI can further allow one to differentiate between several causes of viral pathogens responsible for myocarditis. An example would be that patients with herpes virus 6 present with a characteristic septal foci enhancement, while patients with parvovirus B19 depict foci in the areas of the subepicardium of the lateral left ventricle [14].

Apart from its diagnostic yield, cardiac MRI may also aid in prognostication of myocarditis. In a small study with 3-year follow-up, myocarditis patients had repeat cardiac MRI at 4 weeks after clinical onset of the disease. Contrast enhancement ratio at 4 weeks was predictive of the functional and clinical long-term outcome [15].

There are no randomized controlled treatment data advising on the utility of EMB. Hence, recommendations regarding its use are based on case-control series and expert opinion. With the exception of monitoring for cardiac allograft rejection, the 2007 AHA/ACCF/ESC statement recommended two clinical settings in which EMB should be performed, one being in the event of an unexplained new-onset heart failure (HF) of less than 2 weeks’ duration associated with a normal-sized or dilated left ventricle in addition to hemodynamic compromise (clinical scenario 1) and the other event being an unexplained new-onset HF of 2 weeks to 3 months’ duration associated with a dilated left ventricle and new arrhythmias such as ventricular arrhythmias, Mobitz type II second-degree atrioventricular (AV) block, third-degree AV block, or failure to respond to usual care within 1 - 2 weeks (clinical scenario 2) [1]. Additional recommendations and clinical scenarios are described in Table 1.

Click to view

Table 1. The 2007 AHA/ACCF/ESC Guidelines for Endomyocardial Biopsy (Modified From the AHA/ACCF/ESC “Role of Endomyocardial Biopsy in the Management of Cardiovascular Disease” [1])

The patient in this case report was discharged home with a diagnosis of myocarditis without needing EMB. As myocarditis may have a varied clinical presentation, its diagnosis is often challenging. The differential for chest pain and ST segment elevation is broad. Though myocarditis is a less frequent etiology, there are several clinical scenarios where practitioners should be aware of the possibility. The utility of cardiac MRI is expanding as a non-invasive diagnostic tool for myocarditis. Evidence-based medicine has shown a growing role for cardiac MRI within the realm of diagnosis and a continuing need for it even without EMB, the current “gold standard”. The benefits of cardiac MRI include prognostication, augmenting yield of an EMB and diagnosis without EMB.

1) Myocarditis can have mixed clinical manifestations and should be kept in mind as a possibility in cases presenting with signs and symptoms of myocardial infarction but with normal coronary angiography, as discussed in the present case report

2) Low sensitivity, invasive approach and a relatively higher rate of complication limit the use of EMB for diagnosis of myocarditis.

3) Cardiac MRI offers a non-invasive, reliable tool for diagnosis of myocarditis; additional advantages include repeatability factor, indirect assessment of relative cardiac function and prognostication.
