Original Article

Volume 7, Number 4, August 2016, pages 140-145

Fragmented QRS as a Marker of Electrical Dyssynchrony to Predict Inter-Ventricular Conduction Defect by Subsequent Echocardiographic Assessment in Symptomatic Patients of Non-Ischemic Dilated Cardiomyopathy

Heart failure (HF) is a cardiovascular disease with increasing incidence and prevalence with high mortality rate and is the most common cause of hospitalization in patients with cardiac diseases. Left ventricular (LV) dyssynchrony frequently occurs in HF patients, especially in those with wide QRS interval [1]. Recently, management of HF has gone a paradigm shift from drugs to device in form of cardiac resynchronization therapy (CRT) among patients with wide QRS intervals which does optimization of the AV-delay resulting in synchrony in ventricular contraction and an improvement in systolic function and mitral regurgitation (MR) [2]. Despite these impressive results, almost 30-50% of patients are suboptimal responders in terms of clinical symptoms, and LV function assessed on echocardiography [3-5]. Reasons may be insufficient evidence of mechanical dyssynchrony pre-implantation, presence of transmural scar at posterolateral wall, lack of contractile reserve, severe MR, suboptimal LV lead position and inappropriate device programming [6]. LV mechanical dyssynchrony is characterized by temporal differences in contraction between various myocardial segments, and commonly observed in patients with congestive HF, whose presence depends on assessment methodology, characteristics of the study population including the QRS duration, loading condition, severity of coronary artery disease, LV hypertrophy and LV remodeling. Therefore, the ECG criteria of QRS width ≥ 120 ms adopted in the current guidelines may be a suboptimal tool in identifying the patients who benefit most from CRT or defining the presence of mechanical dyssynchrony. The myocardial scar causes heterogeneous ventricular activity, and is associated with alteration in QRS morphology, leading to terminal conduction delay or fragmentation of the QRS complexes on 12-lead ECG [7]. Fragmented QRS (fQRS) includes various RSR patterns with different morphologies of the QRS complexes with or without the Q wave on a resting 12-lead ECG [8]. It is associated with subendocardial fibrosis and myocardial scars and it has been shown that response to CRT is associated with the extent of myocardial scar tissue in patients with ventricular dyssynchrony [9-11]. Because of large inter-individual variability to response to CRT, it is important to find the predictor’s responsiveness pre-implantation. QRS duration is the main selection criterion for diagnosing the presence of mechanical dyssynchrony. However, it is poorly correlated with the presence of mechanical dyssynchrony as measurement of QRS duration is an electrical phenomenon. Though QRS ≥ 120 ms is a surrogate marker of electrical dyssynchrony, it occurs in only 30% of HF patients. On the other hand, in patients of HF with normal QRS duration, LV dyssynchrony has been reported in 20-50% [12, 13]. fQRS in patients with non-ischemic dilated cardiomyopathy (DCM) is related to uncoordinated depolarization of viable myocytes being surrounded by fibrotic tissue as a result of inflammation of myocytes causing necrosis and fibrosis which eventually leads to mechanical dyssynchrony [14, 15]. This study was carried out to investigate the role of fQRS on the surface ECG as a marker of electrical dyssynchrony to predict the presence of significant intraventricular dyssynchrony (IVD) by subsequent echocardiographic assessment.

It was a prospective, non-randomized, single-center study of 226 patients conducted in the Department of Cardiology, LPS Institute of Cardiology, G.S.V.M. Medical College, Kanpur, UP, India, from September 2013 till the end of July 2015. Inclusion criteria were all symptomatic patients with chronic HF (NYHA functional class ≥ II) with guideline-directed medical treatment for at least 6 months due to non-ischemic DCM, LV ejection fraction (LVEF) ≤ 35% and normal sinus rhythm having narrow QRS complexes (≤ 120 ms). Exclusion criteria were patients with valvular heart disease, history of myocardial infarction, ischemic ECG findings, angiographically significant coronary artery disease (≥ 70% stenosis in any epicardial coronary artery), atrial fibrillation, chronic liver or kidney failure, as well as patients with permanent pacemakers.

All patients were comprehensively evaluated including their 12-lead ECG. Their functional capacity was recorded. Coronary angiogram was done in all patients to rule out the presence of significant coronary artery disease.

fQRS included various RSR patterns and was defined by the presence of an additional R wave (R prime), notching in nadir of the S wave, notching of R wave, or the presence of more than one R prime (fragmentation) in two contiguous leads corresponding to a major myocardial segment as previously described by Das et al [8] (Fig. 1). The presence of fQRS in ≥ 2 contiguous anterior leads (V₁-V₅) were assigned to anterior myocardial segments, ≥ 2 contiguous lateral leads (I, aVL, and V₅, V₆) to the lateral myocardial segments, ≥ 2 contiguous inferior leads (II, III, and aVF) to the inferior myocardial segments and both V₁ and V₂ only to the posterior myocardial segments.

Click for large image

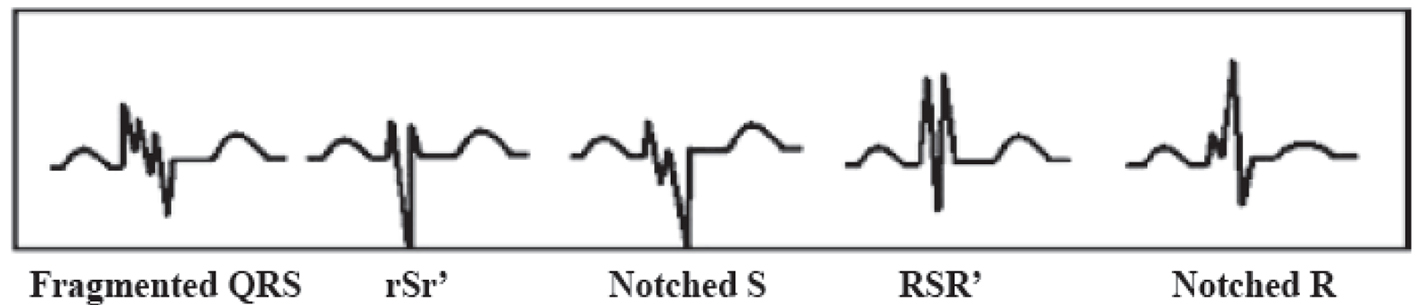

Figure 1. Different types of fragmented QRS (fQRS).

Echocardiography was performed with VIVID7 (GE) instrument. Tissue Doppler imaging (TDI) was performed in the apical views (four-chamber, two-chamber and long-axis) for the long axis motion of the left ventricle. Myocardial regional velocity curves were constructed from the digitized images using Q analysis by dedicated offline software. In this way, all 12 segments were analyzed at both basal and middle levels. Measurement was taken at the beginning of the QRS complex considering this as the reference point, from where the time-to-peak myocardial sustained systolic (Ts) velocities were calculated. For the assessment of synchronicity, the standard deviations of Ts (Ts-SD) of all 12 LV segments were calculated. Significant systolic IVD was defined as Ts-SD > 32.6 ms as proposed by Yu et al [16] and popularly known as “Yu index” (Fig. 2). “Dyssynchronic segments” were defined as those LV segments that contracted later than 100 ms following the earliest contracting LV segment (which had the earliest Ts) and “most delayed segment” was the last contracting myocardial segment (which had the latest Ts). The study protocol was approved by the local ethics committee and followed the Declaration of Helsinki after obtaining informed consent from each patient.

Click for large image

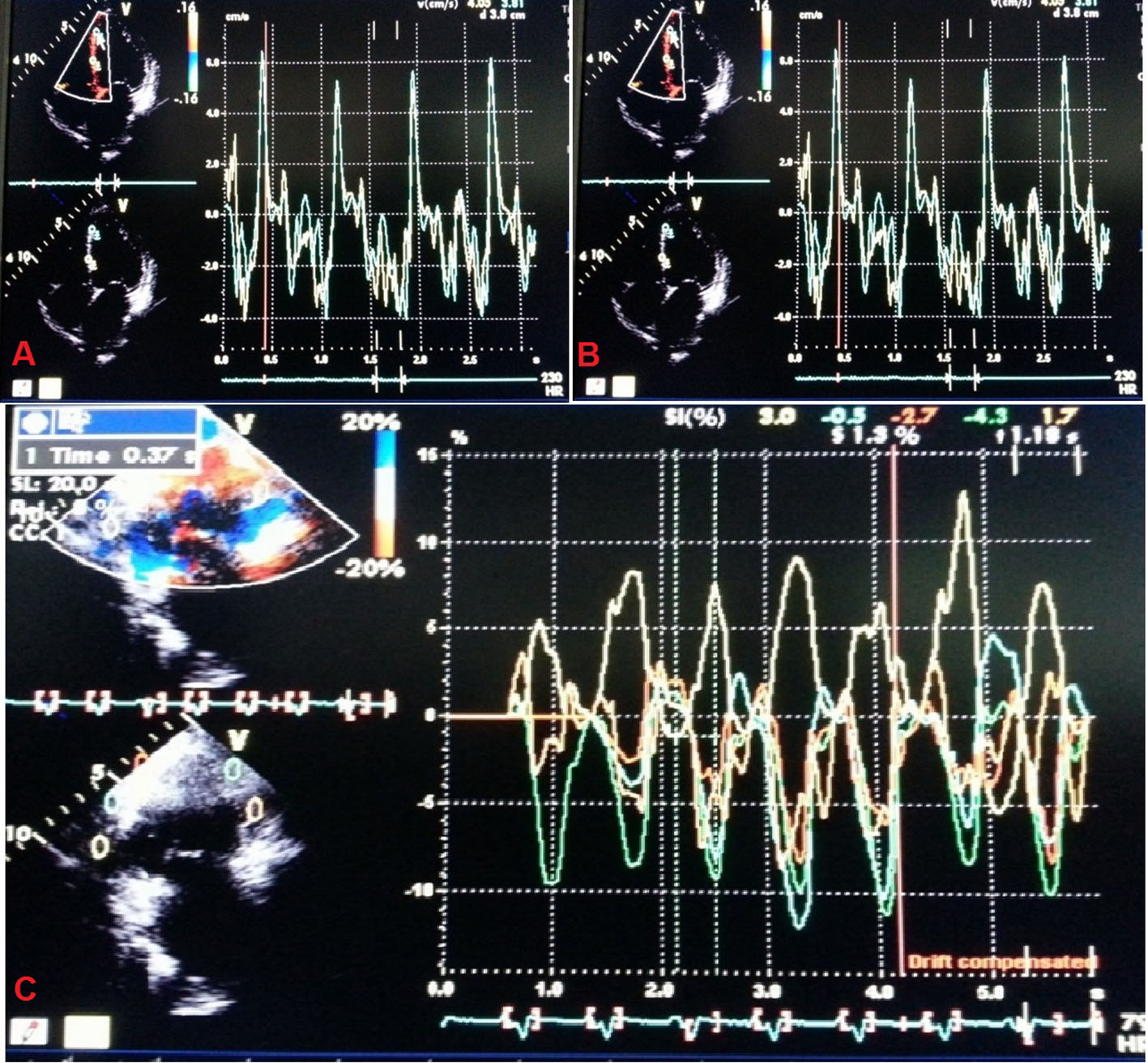

Figure 2. Tissue Doppler imaging to calculate “Yu index”.

Statistical analyses were performed using the SPSS 17.0 (SPSS Inc, Chicago, IL). Continuous variables were analyzed using Student’s t-test and presented as mean ± SD, whereas categorical variables were given as numbers (percentages). The comparison between groups was done by Mann-Whitney U test for continuous variables and by Chi-square or Fisher’s exact test for categorical variables. P < 0.05 was considered statistically significant.

Two hundred and twenty-six patients of non-ischemic cardiomyopathy were investigated, of which 112 had fQRS, while 114 patients had nQRS whose baseline characteristics are shown in Table 1. There was male dominance (M/F = 71:29) with no significant difference among both groups. Majority of patients were in NYHA class II (122, 54%), followed by class III (n = 83; 37%), and class IV (n = 21; 9%). There were no significant differences among both groups for baseline parameters except higher QRS duration (102.42 ± 14.05 vs. 91.10 ± 13.75 ms; P = 0.001), higher Yu index (35.64 ± 12.79 vs. 20.45 ± 11.17; P = 0.01) and number of patients with positive Yu index (78.6% vs. 21.1%; P = 0.04) in group with fQRS compared with group with nQRS. fQRS complexes had 84.61% sensitivity and 80.32% specificity with positive predictive value of 78.6% and negative predictive value of 85.9% to detect IVD (Fig. 3). When detailed segmental analysis was performed for the distribution of fQRS, inferior segment had maximum (37%) followed by anterior (23%), lateral (19%), inferior and lateral (11%), anterior and inferior (8%), and anterior and lateral (2%) (Fig. 4). Among 104 patients with significant dyssynchrony, 88 patients (84.6%) had ECG fragmentation in the dyssynchronic segment.

Click to view

Table 1. Baseline Clinical, Electrocardiographic and Echocardiographic Parameters of Patients (n = 226)

Click for large image

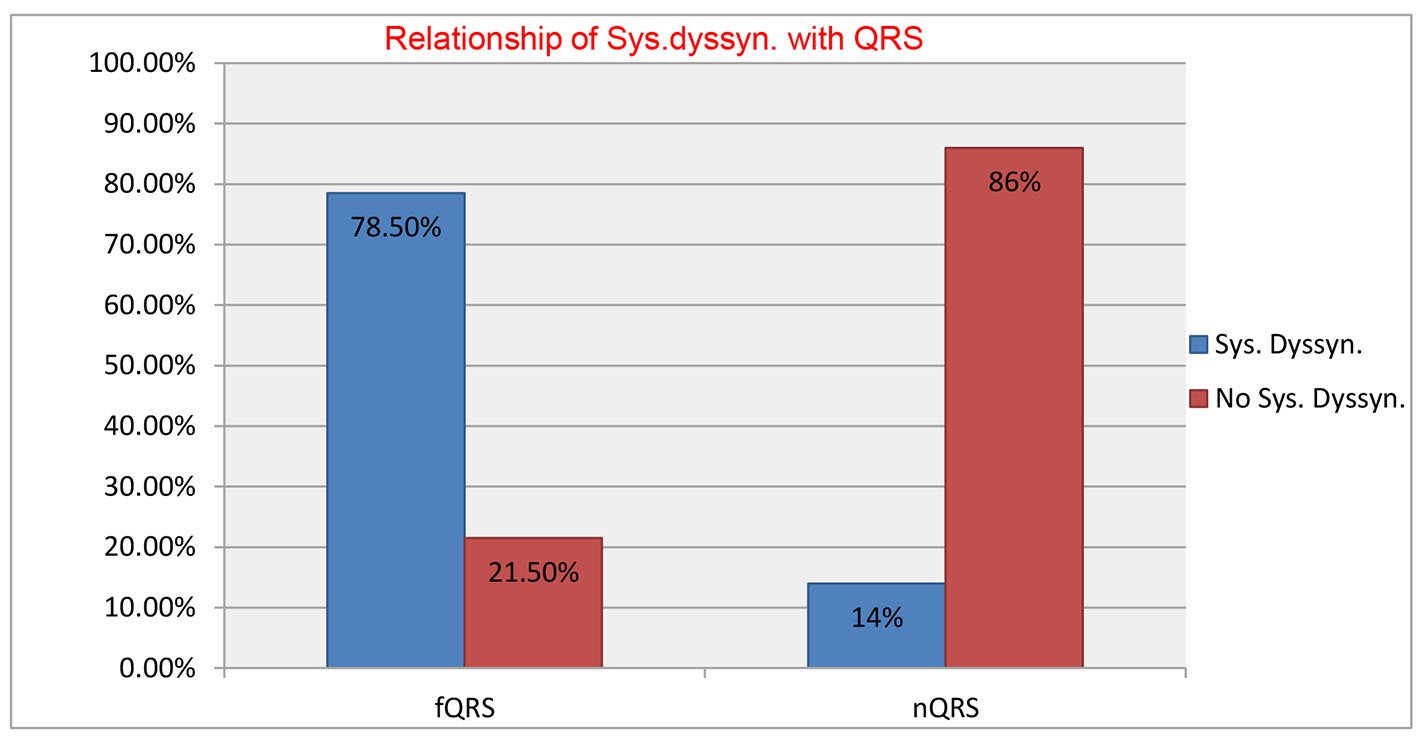

Figure 3. Sensitivity, specificity, positive predictive value and negative predictive value of fQRS complexes to detect intraventricular dyssynchrony.

Click for large image

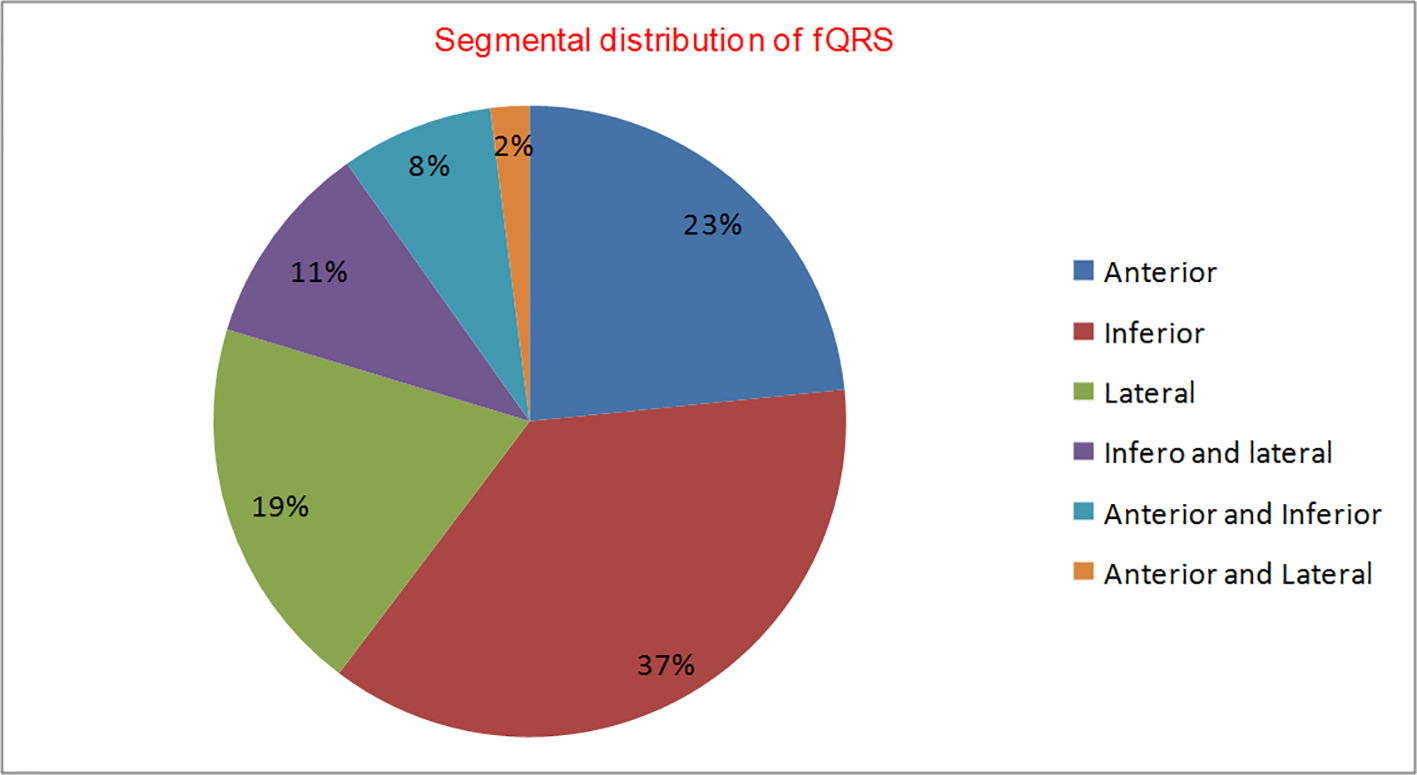

Figure 4. Segmental distribution of fQRS (n = 114).

The predominant mechanism of benefit from CRT appears to be related to the presence of electro-mechanical dyssynchrony, i.e. QRS ≥ 120 ms and subsequent resynchronization after CRT [17-20]. However, studies have shown that QRS duration of ≥ 120 ms occurs in only 30% of HF, and significant IVD by TDI has been reported in 36-51% of patients with HF and QRS ≤ 120 ms, and these patients also showed benefit from CRT [21-24]. There are few trials showing benefit of CRT with NYHA class III/IV HF and EF ≤ 35%, but QRS ≤ 120 ms, who had mechanical dyssynchrony defined as a septal-to-lateral wall time-to-peak systolic velocity delay of ≥ 65 ms by TDI as shown by Bleeker et al [25]. With QRS prolongation, shape of QRS complex also changes, with LBBB being the most common followed by RBBB. fQRS is present in 23-75% of the patients with idiopathic DCM and narrow QRS complexes.

Das et al [8] first reported the significance of fQRS in patients of coronary artery disease where it was found to be a better predictor of myocardial scar than Q waves on ECG. In non-ischemic cardiomyopathy, it is electrical manifestation of uncoordinated depolarization of viable myocytes surrounded by fibrotic tissue, which eventually leads to mechanical dyssynchrony.

Tigen et al [1] were the first to investigate the relationship between fQRS and IVD in patients of non-ischemic DCM and narrow QRS interval (duration ≤ 120 ms). They defined significant systolic dyssynchrony as the maximum difference in peak systolic velocities between any two LV segments of more than 100 ms. Using this criterion, fQRS was found to detect IVD in 72.5% patients with sensitivity of 90.6% and positive predictive value of 72.5%. Subsequently, Basaran et al [9] reported that fQRS on the surface ECG in patients of non-ischemic DCM is associated with significant IVD in 76% patients as assessed by the “Yu index”. But due to lack of control group of patients without fQRS, they could not assess the sensitivity or positive predictive value of fQRS as predictor of significant IVD.

“Yu index” has been shown to be an excellent predictor of CRT responder defined by reverse remodeling (≥ 15% reduction in LV end-systolic volume). In patients with QRS duration ≥ 150 ms, the “Yu index” has a sensitivity and specificity of 100% and 78%, respectively to predict reverse remodeling, while in patients with QRS duration of 120 - 150 ms, the sensitivity is 83% and specificity is 86% [15]. “Yu index” is based on 12 segment models using color-coded TDI integrating information from three apical views (four-chamber, two-chamber and apical long axis view) in contrast to the simple two segment (apical four-chamber view to detect basal septal-lateral delay) and four segment (basal segments of septal, lateral, inferior and anterior walls) approaches to detect IVD. This model is more comprehensive as it incorporates the anterior septum and posterior walls which often displays dyssynchrony. Our study showed that fQRS had a sensitivity of 84.61% and a positive predictive value of 78.6% to detect significant IVD as defined by the “Yu index”.

Beshai et al [26] in RethinQ trial investigated the role of CRT in HF patients with narrow QRS and echocardiographic evidence of IVD. They showed that IVD per se failed to provide clinical benefits with CRT over medial therapy in the absence of ECG evidence of electrical dyssynchrony. Our study has shown that fQRS on the surface ECG is a marker of electrical dyssynchrony and can predict significant IVD as defined by the “Yu index” in more than 80% patients. In our study, QRS duration was significantly greater in patients with fQRS as compared to those with nQRS, although both groups had QRS duration of ≤ 120 ms. As fragmentation along with widening of QRS leads to electrical dyssynchrony, fQRS in patients with QRS ≤ 120 ms may be considered to have the same significance as wide QRS to predict the presence of electrical dyssynchrony leading to IVD and responsiveness to CRT in patients of non-ischemic DCM.

Fragmentation of QRS complex is an important predictor of electrical dyssynchrony. It is also helpful in localizing the dyssynchronous segment. In future, larger studies may be carried out to investigate the role of fQRS as a predictor of response to CRT in this subgroup of HF patients with narrow QRS.

Financial Disclosure

None.

Conflicts of Interest

None.

1. Tigen K, Karaahmet T, Gurel E, Cevik C, Nugent K, Pala S, Tanalp AC, et al. The utility of fragmented QRS complexes to predict significant intraventricular dyssynchrony in nonischemic dilated cardiomyopathy patients with a narrow QRS interval. Can J Cardiol. 2009;25(9):517-522.
   doi
2. Versteeg H, Schiffer AA, Widdershoven JW, Meine MM, Doevendans PA, Pedersen SS. Response to cardiac resynchronization therapy: is it time to expand the criteria? Pacing Clin Electrophysiol. 2009;32(10):1247-1256.
   doi
3. Lecoq G, Leclercq C, Leray E, Crocq C, Alonso C, de Place C, Mabo P, et al. Clinical and electrocardiographic predictors of a positive response to cardiac resynchronization therapy in advanced heart failure. Eur Heart J. 2005;26(11):1094-1100.
   doi pubmed
4. Mollema SA, Bleeker GB, van der Wall EE, Schalij MJ, Bax JJ. Usefulness of QRS duration to predict response to cardiac resynchronization therapy in patients with end-stage heart failure. Am J Cardiol. 2007;100(11):1665-1670.
   doi pubmed
5. Buck S, Maass AH, Nieuwland W, Anthonio RL, Van Veldhuisen DJ, Van Gelder IC. Impact of interventricular lead distance and the decrease in septal-to-lateral delay on response to cardiac resynchronization therapy. Europace. 2008;10(11):1313-1319.
   doi pubmed
6. Hekmatpou D, Mohammadi E, Ahmadi F, Arefi SH. Noncompliance factors of congestive heart failure patients readmitted in cardiac care units. IJCCN. 2009;23:91-97.
7. Aslani A, Tavoosi A, Emkanjoo Z. Diffuse fragmented QRS as an index of extensive myocardial scar. Indian Pacing Electrophysiol J. 2010;10(1):67-68.
   pubmed
8. Das MK, Suradi H, Maskoun W, Michael MA, Shen C, Peng J, Dandamudi G, et al. Fragmented wide QRS on a 12-lead ECG: a sign of myocardial scar and poor prognosis. Circ Arrhythm Electrophysiol. 2008;1(4):258-268.
   doi pubmed
9. Basaran Y, Tigen K, Karaahmet T, Isiklar I, Cevik C, Gurel E, Dundar C, et al. Fragmented QRS complexes are associated with cardiac fibrosis and significant intraventricular systolic dyssynchrony in nonischemic dilated cardiomyopathy patients with a narrow QRS interval. Echocardiography. 2011;28(1):62-68.
   doi pubmed
10. Adelstein EC, Saba S. Scar burden by myocardial perfusion imaging predicts echocardiographic response to cardiac resynchronization therapy in ischemic cardiomyopathy. Am Heart J. 2007;153(1):105-112.
    doi pubmed
11. Ypenburg C, Schalij MJ, Bleeker GB, Steendijk P, Boersma E, Dibbets-Schneider P, Stokkel MP, et al. Impact of viability and scar tissue on response to cardiac resynchronization therapy in ischaemic heart failure patients. Eur Heart J. 2007;28(1):33-41.
    doi pubmed
12. Kashani A, Barold SS. Significance of QRS complex duration in patients with heart failure. J Am Coll Cardiol. 2005;46(12):2183-2192.
    doi pubmed
13. Freudenberger R, Sikora JA, Fisher M, Wilson A, Gold M. Electrocardiogram and clinical characteristics of patients referred for cardiac transplantation: implications for pacing in heart failure. Clin Cardiol. 2004;27(3):151-153.
    doi pubmed
14. Marijianowski MM, Teeling P, Mann J, Becker AE. Dilated cardiomyopathy is associated with an increase in the type I/type III collagen ratio: a quantitative assessment. J Am Coll Cardiol. 1995;25(6):1263-1272.
    doi
15. Yu CM, Fung JW, Chan CK, Chan YS, Zhang Q, Lin H, Yip GW, et al. Comparison of efficacy of reverse remodeling and clinical improvement for relatively narrow and wide QRS complexes after cardiac resynchronization therapy for heart failure. J Cardiovasc Electrophysiol. 2004;15(9):1058-1065.
    doi pubmed
16. Yu CM, Chan YS, Zhang Q, Yip GW, Chan CK, Kum LC, Wu L, et al. Benefits of cardiac resynchronization therapy for heart failure patients with narrow QRS complexes and coexisting systolic asynchrony by echocardiography. J Am Coll Cardiol. 2006;48(11):2251-2257.
    doi pubmed
17. Bax JJ, Marwick TH, Molhoek SG, Bleeker GB, van Erven L, Boersma E, Steendijk P, et al. Left ventricular dyssynchrony predicts benefit of cardiac resynchronization therapy in patients with end-stage heart failure before pacemaker implantation. Am J Cardiol. 2003;92(10):1238-1240.
    doi pubmed
18. Yu CM, Fung WH, Lin H, Zhang Q, Sanderson JE, Lau CP. Predictors of left ventricular reverse remodeling after cardiac resynchronization therapy for heart failure secondary to idiopathic dilated or ischemic cardiomyopathy. Am J Cardiol. 2003;91(6):684-688.
    doi
19. Breithardt OA, Stellbrink C, Kramer AP, Sinha AM, Franke A, Salo R, Schiffgens B, et al. Echocardiographic quantification of left ventricular asynchrony predicts an acute hemodynamic benefit of cardiac resynchronization therapy. J Am Coll Cardiol. 2002;40(3):536-545.
    doi
20. Bax JJ, Bleeker GB, Marwick TH, Molhoek SG, Boersma E, Steendijk P, van der Wall EE, et al. Left ventricular dyssynchrony predicts response and prognosis after cardiac resynchronization therapy. J Am Coll Cardiol. 2004;44(9):1834-1840.
    doi pubmed
21. Cazeau S, Leclercq C, Lavergne T, Walker S, Varma C, Linde C, Garrigue S, et al. Effects of multisite biventricular pacing in patients with heart failure and intraventricular conduction delay. N Engl J Med. 2001;344(12):873-880.
    doi pubmed
22. Haghjoo M, Bagherzadeh A, Fazelifar AF, Haghighi ZO, Esmaielzadeh M, Alizadeh A, Emkanjoo Z, et al. Prevalence of mechanical dyssynchrony in heart failure patients with different QRS durations. Pacing Clin Electrophysiol. 2007;30(5):616-622.
    doi pubmed
23. Bleeker GB, Holman ER, Steendijk P, Boersma E, van der Wall EE, Schalij MJ, Bax JJ. Cardiac resynchronization therapy in patients with a narrow QRS complex. J Am Coll Cardiol. 2006;48(11):2243-2250.
    doi pubmed
24. Achilli A, Sassara M, Ficili S, Pontillo D, Achilli P, Alessi C, De Spirito S, et al. Long-term effectiveness of cardiac resynchronization therapy in patients with refractory heart failure and "narrow" QRS. J Am Coll Cardiol. 2003;42(12):2117-2124.
    doi pubmed
25. Bleeker GB, Schalij MJ, Molhoek SG, Holman ER, Verwey HF, Steendijk P, van der Wall EE, et al. Frequency of left ventricular dyssynchrony in patients with heart failure and a narrow QRS complex. Am J Cardiol. 2005;95(1):140-142.
    doi pubmed
26. Beshai JF, Grimm RA, Nagueh SF, Baker JH, 2nd, Beau SL, Greenberg SM, Pires LA, et al. Cardiac-resynchronization therapy in heart failure with narrow QRS complexes. N Engl J Med. 2007;357(24):2461-2471.
    doi pubmed
