Cardiology Research

Original Article

Volume 8, Number 5, October 2017, pages 190-198

Occurrence and Impact of Time Delay to Primary Percutaneous Coronary Intervention in Patients With ST-Segment Elevation Myocardial Infarction

There is general consensus that proper timing of reperfusion therapy is very critical in the management of ST-segment elevation myocardial infarction (STEMI) patients, with the greatest benefit (i.e. salvage of the viable myocardium) seen in those undergoing reperfusion therapy within the first 2 - 3 h of symptom onset [1, 2]. Current treatment strategies aim to provide optimal care, while minimizing delays in order to improve clinical outcomes. However, there still remains a wide range of logistic problems including patient delays and in-hospital transfer which can render treatment goals unachievable. Reduction of first-medical-contact-to-balloon time relies on efficient coordination of care between first medical contact or referral hospitals, the emergency medical service and the receiving hospitals. It is estimated that about two-thirds of patients achieve a guideline-recommended overall first-hospital-door-to-balloon time of 120 min. It has been recommended that in patients referred to or presenting to percutaneous coronary intervention (PCI)-capable centers, door-to-balloon time should be less than 60 min. On the other hand, in order to shorten reperfusion delays and lower in-hospital mortality, transfer from a non-PCI-capable center is advisable to occur within 30 min, which is normally referred to as door-in-to-door-out time.

The prospective multi-center Special Program University Medicine (SPUM) - ACS Biomarker cohort (ClinicalTrials.gov number, NCT01000701) recruited 2,200 patients who were referred for coronary angiography with a diagnosis of acute coronary syndrome (ACS) to one of the participating Swiss University Hospitals (Zurich, Bern, Lausanne, and Geneva) between December 2009 and October 2012. It comprised consecutive recruitment and follow-up performed at 30 days (phone call) and 1 year (clinical visit). Female and male patients aged 18 years or older presenting within 5 days after pain onset with the main diagnosis of STEMI, non-ST-elevation myocardial infarction (NSTEMI) or unstable angina (UA) were included.

Within this consortium, a centralized electronic database was implemented providing comprehensive information on all patients. All adverse events occurring within 365 days after the index ACS event were ascertained at 30 days (telephone visit) and 1 year (clinical visit) and adjudicated by an independent adjudication committee consisting of three experienced cardiologists (Lukas Kappenberger, MD, Lausanne; TizianoMoccetti, MD, Lugano; Mathias E. Pfisterer, Basel, chair). In the current study, only patients recruited at the University Hospital Zurich were analyzed. The study was approved by the local ethics committee and all patients gave informed consent.

Included patients had symptoms compatible with angina pectoris (chest pain and dyspnea) and fulfilled at least one of the following criteria: 1) electrocardiogram (ECG) changes such as persistent ST-segment elevation or depression, T-inversion or dynamic ECG changes, new left bundle branch block (LBBB); 2) evidence of positive (predominantly conventional) troponin by local laboratory reference values with a rise and/or fall in serial troponin levels; 3) known coronary artery disease (CAD), specified as status after myocardial infarction (MI), previous PCI or newly documented ≥ 50% stenosis of an epicardial coronary artery during the initial catheterization. Exclusion criteria comprised referral to either coronary artery bypass graft (CABG) or medical management after completion of the coronary angiogram, severe physical disability, and inability to comprehend study or less than 1 year of life expectancy for non-cardiac reasons.

All-cause mortality included cardiac, vascular and non-cardiovascular causes of death. Cerebrovascular events comprised stroke or transient ischemic attack; repeat revascularization included any repeat coronary revascularization (target and non-target vessel). MI was defined based on the universal definition including peri-procedural MI in patients with UA [3].

The primary endpoint of our study was adjudicated all-cause mortality in hospital, at 1-month and 1-year follow-ups. The secondary endpoints were major adverse cardiovascular events (MACCE), defined as a composite of all-cause mortality, cerebrovascular event, any repeat revascularization and MI in hospital (reinfarction) at 1 month and 1 year, and stent thrombosis in hospital, at 1 month and 1 year follow-ups.

For all patients, four time intervals were determined: 1) time from symptoms onset to hospital arrival: it is well known that the greatest benefit (i.e. salvage of the viable myocardium) is seen in those undergoing reperfusion therapy within the first 2 - 3 h of symptom onset [1, 2, 4, 5], so we divided our patients in two groups (within 3 h or longer than 3 h); 2) time from hospital arrival to arrival in the catheterization laboratory: we construct it as stated by last AHA recommendation for STEMI system of care 2016 that considered maximum of 30 min for cathlab team to be ready from STEMI activation call (within 30 min or after 30 min); 3) time from hospital arrival to first balloon inflation as it is stated by last ESC and AHA guidelines to be within 90 min as a maximum (we divided patients to two groups door-to-balloon time within 90 min or after 90 min); and 4) time from arrival in the catheterization laboratory to first balloon inflation (within 60 min and after 60 min), in addition to total ischemic time in minutes in relation to time of presentation and resuscitation.

All continuous variables were statistically described in terms of median values as data were not normally distributed; categorical variables were presented as frequency (percentages) and were compared using Chi-square test. P values were used to describe significance. Statistical significance was set as a P value < 0.05. All statistical calculations were done using Statistical Package for Social Sciences (SPSS for Windows) software (version 20.0, SPSS Inc., Chicago, IL, USA).

A total of 357 consecutive STEMI patients from Zurich enrolled in the prospective Special Program University Medicine ACS (SPUM-ACS) cohort were included.

Their mean age was 62.3 years (range: 32 - 91.6 years), 81% were males, 43.4% were current smokers, 66.4% had hypercholesterolemia, 54.3% were hypertensive and 15.1% diabetics. A positive family history for CAD was noted in 21.6% and 8.1% had a previous MI, 9% had undergone PCI previously and 2.5% CABG. Of the patients, 2.2% had a history of previous stroke. At entry, 8.9% of the patients had been resuscitated (Table 1).

Click to view

Table 1. Basic Clinical and Demographic Data in STEMI Patientss

Overall mortality was 1.7% at day 0, still 1.7% at 30 days and 3.6% at 1 year, while cardiac death was 1.4% at day 0, remained at 1.4% at 30 days and was 2.2% at 1 year. MACCE were 2.2% at day 0, 3.6% at 30 days and 7.8% at 1 year. The percentage of those with recurrent MI was 0.6% at day 0 (in hospital reinfarction), 0.8% at 30 days and 2.5% at 1 year, while repeat revascularization was 0.8% at day 0, 2.0% at 30 days and 5.3% at 1 year. Acute stent thrombosis occurred in 0.3% at day 0, in 0.8% at 30 days and in 1.4% at 1 year. Major bleeding occurred in 5.6% at day 0, in 6.4% at 30 days and in 9.2% at 1 year. Patients who arrived > 3 h from onset of symptoms had a higher rate of MI at 1 year (1.4% vs. 8% in < 3 h; P = 0.008). Further, patients in whom a first balloon inflation occurred > 1 h after arrival in the catheterization laboratory had a higher rate of recurrent MI at day 0 (0.6% vs. 0% in < 1 h; P = 0.007), at 30 days (0.8% vs. 0% in < 1 h; P = 0.001) and at 1 year (1.4% vs. 1.1% in < 1 h; P = 0.012) (Table 2).

Click to view

Table 2. Outcomes of STEMI Patients at 0 Day, 30 Days and 1 Year

Median time from symptom onset to arrival at the hospital was 156 min. Of the patients, 57.4% arrived within 3 h and 42.6% after 3 h. Median time from hospital arrival to catheterization laboratory arrival was 20 min. Of the patients, 59.4% arrived within 30 min and 40.6% after 30 min. Median time from hospital arrival to first balloon inflation (door-to-balloon time) was 69 min; 63.3% of the patients were treated within 90 min and 36.7% after 90 min. Finally, median time from catheterization laboratory arrival to first balloon inflation was 36 min; 78.4% of the patients achieved within 60 min and 21.6% after 60 min (Figs. 1 and 2).

Click for large image

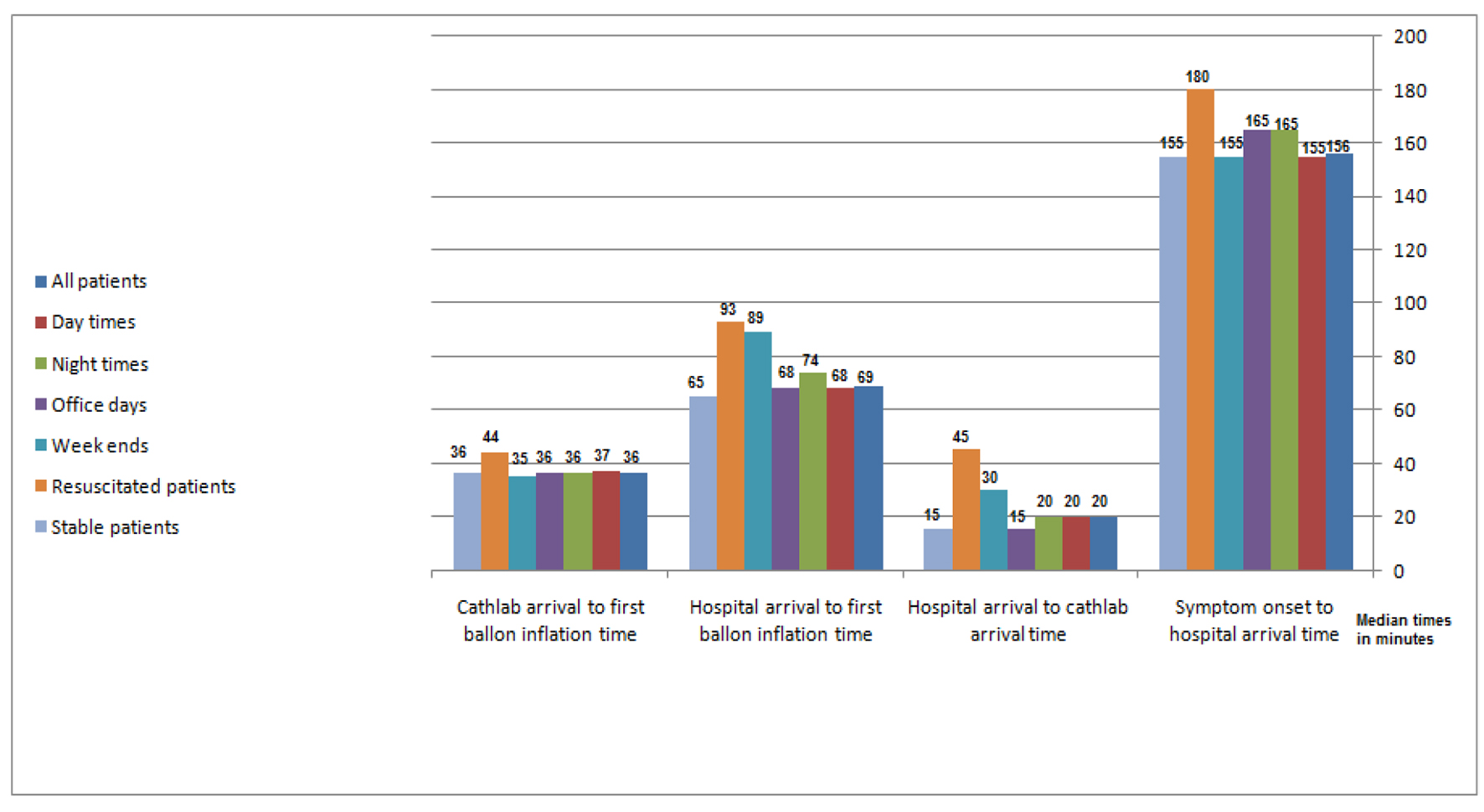

Figure 1. Mean time intervals in minutes to primary PCI in STEMI in different patient groups.

Click for large image

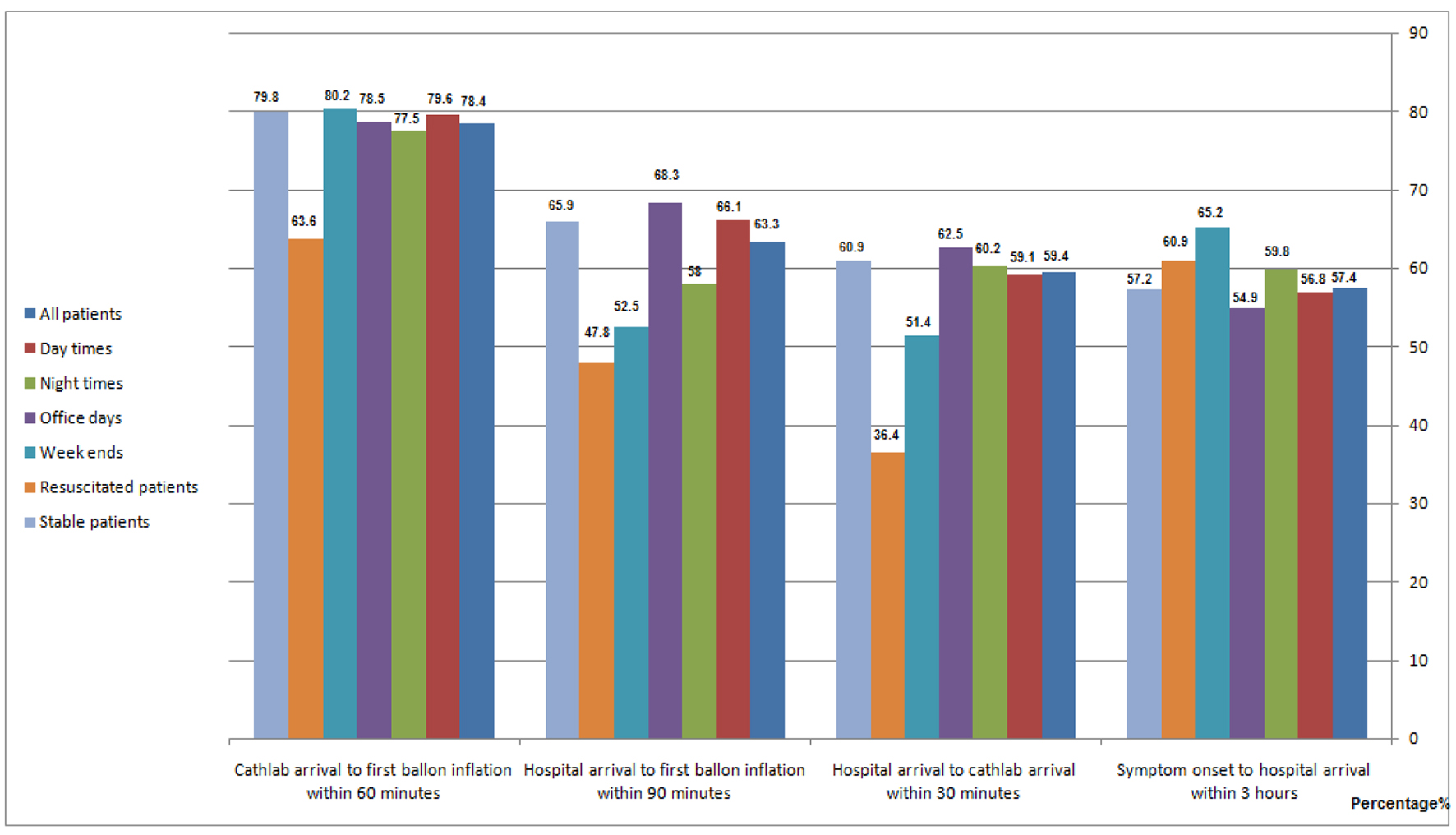

Figure 2. Percentage of patients managed earlier in relation to patients presentation.

Patients with history of a previous MI or PCI had a shorter time from symptoms onset to hospital arrival (P = 0.004).

We further found that patients presenting at night time (n = 100) had slightly longer median door-to-balloon time (74 min) than those arriving at office hours (68 min) at office hours, while the former group required more than 90 min in 42% of the patients, and in the latter only 33.9% had such a long door-to-balloon time (P = 0.012). Furthermore, overall median door-to-balloon time was 89 min at weekends and public holidays (n = 101), but 68 min during office hours. Again, door-to-balloon time was more than 90 min in 47.5% of patients presenting at such days, but only 31.7% of those arriving during office hours (P = 0.023). Median time from hospital arrival to cathlab during night hours was 20 min and similar to office hours. During night hours, 39.8% of patients took more than 30 min versus 40.9% of those arriving during day hours (P = 0.843). The median time at weekends and public holidays was 30 and 15 min during office hours with 48.6% of the patients arriving after 30 min at weekends and public holidays and 37.5% during office hours (P = 0.034). Lastly as regards median time from cathlab arrival to first balloon inflation, this averaged 37 min during office hours, but 36 min at night time, and 35 min at weekends. Time from cathlab arrival to first balloon inflation of more than 1 h occurred in 20.6% of patients arriving at weekends and in 22% in those presenting during office hours (P = 0.782). The corresponding values for at night time and office hours were 22.9% and 20.9%, respectively (P = 0.685).

A total of 23 resuscitated STEMI patients, of which 16 patients had received out-of-hospital resuscitation and seven patients with in-hospital resuscitation, had a median time from symptoms onset to hospital arrival of 188 min as compared to 155 min in non-resuscitated patients. Median door-to-balloon time was 93 min, but 65 min in non-resuscitated patients. Median time from hospital arrival to first balloon inflation averaged 45 min, but only 15 min in non-resuscitated patients. Median time from cathlab arrival to first balloon inflation was 44 min, but only 36 min in non-resuscitated patients.

Late arrivals from symptoms onset to hospital entry had significantly higher peak CK-MB and higher high-sensitivity troponin T levels than early arrivals. Similarly, patients with prolonged time from hospital to arrival to the catheterization laboratory, longer door-to-balloon time or time from catheterization laboratory arrival to first balloon inflation had significantly higher levels of peak troponin T levels than early arrivals.

Median total ischemic time was longer for patients presenting at weekends, at night hours and resuscitated patients, was 225 min for all patients, 223 min at day hours, 239 min at night hours, 244 min at weekends, 233 min at office days, 220 min in stable patients and 273 min in resuscitated patients.

In current study, we found that STEMI patients who arrived > 3 h from onset of symptoms had a significantly higher percentage of MI at 1-year follow-up; furthermore, patients who had a delay of > 1 h from arrival at the catheterization laboratory to first balloon inflation had a higher rate of recurrent MI at day 0, at 30 days and at 1 year as well as a higher rate of cardiac deaths at these time points. Time delays in STEMI patients included patient’s delay along with delays in pre-hospital management, in-hospital transportation to the catheterization laboratory and within the catheterization laboratory until a first balloon inflation. STEMI patients presenting at weekends or public holidays and to a lesser extent those arriving at night time exhibited more time delays and longer total ischemic time than those presenting at daytime or office hours; this finding agrees with recently published Japanese study 2017 which documented off hours presentation as a cause of delay to primary PCI in multicenter registry [6]. Although overall the delays were only in a minority of patients longer than the time periods recommended in current guidelines, our findings nevertheless show that even in experienced tertiary centers current real world practice should be further improved, indeed patient delays might be shorter with a broader knowledge about the clinical presentation of infarction in the population as 85% of our patients experienced the first event upon presentation; however, most of them (80%) had any or several cardiovascular risk factors, physicians managing such patients must therefore inform them better about how and when to react in case of acute chest pain and/or dyspnea in order to shorten symptom onset to arrival time. In-hospital delays do require organizational measures both in the emergency department, transport services as well as in the catheterization laboratory in order to further shorten door-to-balloon-time. Previous studies mostly focused on symptom-to-PCI delays for example data from two small German studies involving only 264 patients reported no reduction in infarct size with primary PCI with decreasing symptom-to-PCI duration [7]. However, half of the patients in those studies had been treated by thrombolytic therapy. In line with our findings, other studies have found reduction in mortality with decreasing symptom-to-PCI delays [8, 9]. However, other studies have shown limited or no effect on mortality with shorter symptom-to-PCI delays [10-12]. The first of these two studies [11] considered 2 h as ideal door-to-balloon time. In a second study [12], only percutaneous transluminal coronary angioplasty was performed and there were no differences in 1- or 6-month mortality by time to reperfusion (6-month mortality: < 2 h (5.5%), 2 to < 4 h (4.6%), 4 to < 6 h (4.5%), > 6 h (4.2%), P = 0.97). There were also no differences in other clinical outcomes by time to reperfusion, except that reinfarction and infarct artery reocclusion at 6 months were more frequent with later reperfusion. Doing PTCA only and only follow-up for short period (only 6 months) explain the different results compared to our study. Thus, previous studies using symptom-to-PCI as a primary measure of time to treatment have been inconsistent with each other both regarding infarct size and clinical outcomes [13-15]. Several other studies have focused mainly on door-to-balloon time and showed convincing data regarding improved clinical outcomes with decreasing door-to-balloon times [11, 12, 16]. However, door-to-balloon time only focuses on the final part of the health care chain leaving out critical care elements where improvements could be achieved by appropriate measures. Our findings thus reinforce the current European Society of Cardiology guidelines on STEMI that state that a delay of 60 min or less from first medical contact to PCI is desirable, and that a timing of 90 min should be considered the upper limit [1]. Finally, an important lesson of the current study is that we also need to work on in-hospital delays either from hospital arrival to the catheterization laboratory or within catheterization laboratory and to provide a clear definition for ideal catheterization laboratory arrival to first-balloon-inflation time that reflects time delays within catheterization laboratory and hospital arrival to cathlab arrival time that reflects time in hospital delays.

Our study demonstrates results from a single center prospective cohort with retrospective data analysis with a moderate number of patients which in turn could benefit from validation in a larger population as part of a prospective trial. One limitation in our study comes from using the 2007 definition of MI which could have led to over diagnosis of MI.

In spite of gradual improvement of time to primary PCI in the last few years, there remain some factors that lead to delays in door-to-balloon time even in tertiary centers with a large case load as the current department. Importantly, we show that delay is also related to the time and day of presentation, in particular at weekends and public holidays stressing the need for logistic improvements particularly during such time periods. Furthermore, to reduce symptom onset to arrival times, it appears important that public education programmes are implemented to further reduce patient delays, while organizational measures should be considered to shorten time delays within the hospital and the catheterization laboratory, especially at weekend and night time.

Acknowledgments

This study was supported by the Swiss National Research Foundation (Special Programme University Medicine “ACS and Inflammation” Nr. 33CM30-124112), as well as unrestricted grants by AstraZeneca, Zug, Switzerland, Eli Lilly, IN, USA, Merck Sharpe and Dome (MSD), Lucerne; Sanofi-Aventis, Vernier; St. Jude Medical, Zurich, all Switzerland, a fellowship grant by Medtronic, Tollachenaz, Switzerland, and the Foundation for Cardiovascular Research - Zurich Heart House, Zurich, Switzerland. The SPUM consortium also received assays from Roche Diagnostics; Rotkreuz, Switzerland, Mohammady Shahin, MD was supported by a grant of mission’s sector-ministry of higher education in Egypt. The authors wish to thank Anika Adam for her excellent management of the study and Dimitrios Nikolaides and his nursing team for their help in obtaining the time data.

Conflict of Interest

RK received lecture fees from Eli Lilly, Servier and Bayer Healthcare. FM has received research grants to the institution from Amgen, AstraZeneca, Boston Scientific, Biotronik, Medtronic, MSD, Eli Lilly and St. Jude Medical including speaker or consultant fees. SW has received research grants to the institution from Abbott, AstraZeneca, Boston Scientific, Biosensors, Biotronik, Cordis, Eli Lilly, Medtronic and St. Jude Medical. PJ is an unpaid steering committee or statistical executive committee member of trials funded by Abbott Vascular, Biosensors, Medtronic and St. Jude Medical. TFL received research grants to the institution from AstraZeneca, Bayer Healthcare, Biosensors, Biotronik, Boston Scientific, Medtronic, MSD, Merck, Roche and Servier, including lecture fees. CMM received research grants to the institution from Eli Lilly, AstraZeneca, Roche and MSD including speaker or consultant fees. All other authors have no conflict of interest to declare.

Abbreviations

ACEI: angiotensin converting enzyme inhibitor; ACS: acute coronary syndrome; ARBB: angiotensin receptor blocker; LBBB: left bundle branch block; BB: beta blocker; CABG: coronary artery bypass graft; CAD: coronary artery disease; CCB: calcium channel blocker; ECG: electrocardiogram; ESC: European Society of Cardiology; GRACE: Global Registry of Acute Coronary Events; MACCE: major adverse cardiac and cerebrovascular events; MI: myocardial infarction; NSTEMI: non-ST-elevation myocardial infarction; PCI: percutaneous coronary intervention; STEMI: ST-segment elevation MI; UA: unstable angina

1. Task Force on the management of STseamiotESoC, Steg PG, James SK, Atar D, Badano LP, Blomstrom-Lundqvist C, Borger MA, et al. ESC Guidelines for the management of acute myocardial infarction in patients presenting with ST-segment elevation. Eur Heart J. 2012;33(20):2569-2619.
2. Gershlick AH, Banning AP, Myat A, Verheugt FW, Gersh BJ. Reperfusion therapy for STEMI: is there still a role for thrombolysis in the era of primary percutaneous coronary intervention? Lancet. 2013;382(9892):624-632.
   doi
3. Thygesen K, Alpert JS, White HD, Joint ESCAAHAWHFTFftRoMI. Universal definition of myocardial infarction. J Am Coll Cardiol. 2007;50(22):2173-2195.
   doi pubmed
4. Miedema MD, Newell MC, Duval S, Garberich RF, Handran CB, Larson DM, Mulder S, et al. Causes of delay and associated mortality in patients transferred with ST-segment-elevation myocardial infarction. Circulation. 2011;124(15):1636-1644.
   doi pubmed
5. Herrin J, Miller LE, Turkmani DF, Nsa W, Drye EE, Bernheim SM, Ling SM, et al. National performance on door-in to door-out time among patients transferred for primary percutaneous coronary intervention. Arch Intern Med. 2011;171(21):1879-1886.
   doi pubmed
6. Ikemura N, Sawano M, Shiraishi Y, Ueda I, Miyata H, Numasawa Y, Noma S, et al. Barriers associated with door-to-balloon delay in contemporary Japanese practice. Circ J. 2017;81(6):815-822.
   doi pubmed
7. Schomig A, Ndrepepa G, Mehilli J, Schwaiger M, Schuhlen H, Nekolla S, Pache J, et al. Therapy-dependent influence of time-to-treatment interval on myocardial salvage in patients with acute myocardial infarction treated with coronary artery stenting or thrombolysis. Circulation. 2003;108(9):1084-1088.
   doi pubmed
8. De Luca G, Suryapranata H, Ottervanger JP, Antman EM. Time delay to treatment and mortality in primary angioplasty for acute myocardial infarction: every minute of delay counts. Circulation. 2004;109(10):1223-1225.
   doi pubmed
9. Cannon CP, Gibson CM, Lambrew CT, Shoultz DA, Levy D, French WJ, Gore JM, et al. Relationship of symptom-onset-to-balloon time and door-to-balloon time with mortality in patients undergoing angioplasty for acute myocardial infarction. JAMA. 2000;283(22):2941-2947.
   doi pubmed
10. Brodie BR, Stone GW, Morice MC, Cox DA, Garcia E, Mattos LA, Boura J, et al. Importance of time to reperfusion on outcomes with primary coronary angioplasty for acute myocardial infarction (results from the Stent Primary Angioplasty in Myocardial Infarction Trial). Am J Cardiol. 2001;88(10):1085-1090.
    doi
11. Brodie BR, Grines CL, Stone GW. Effect of door-to-balloon time on patient mortality. J Am Coll Cardiol. 2006;48(12):2600; author reply 2601.
    doi pubmed
12. Muller UM, Eitel I, Eckrich K, Erbs S, Linke A, Mobius-Winkler S, Mende M, et al. Impact of minimising door-to-balloon times in ST-elevation myocardial infarction to less than 30 min on outcome: an analysis over an 8-year period in a tertiary care centre. Clin Res Cardiol. 2011;100(4):297-309.
    doi pubmed
13. Eitel I, Desch S, Fuernau G, Hildebrand L, Gutberlet M, Schuler G, Thiele H. Prognostic significance and determinants of myocardial salvage assessed by cardiovascular magnetic resonance in acute reperfused myocardial infarction. J Am Coll Cardiol. 2010;55(22):2470-2479.
    doi pubmed
14. Hahn JY, Song YB, Gwon HC, Choe YH, Kim JH, Sung J, Choi SH, et al. Relation of left ventricular infarct transmurality and infarct size after primary percutaneous coronary angioplasty to time from symptom onset to balloon inflation. Am J Cardiol. 2008;102(9):1163-1169.
    doi pubmed
15. Brodie BR, Webb J, Cox DA, Qureshi M, Kalynych A, Turco M, Schultheiss HP, et al. Impact of time to treatment on myocardial reperfusion and infarct size with primary percutaneous coronary intervention for acute myocardial infarction (from the EMERALD Trial). Am J Cardiol. 2007;99(12):1680-1686.
    doi pubmed
16. Blankenship JC, Scott TD, Skelding KA, Haldis TA, Tompkins-Weber K, Sledgen MY, Donegan MA, et al. Door-to-balloon times under 90 min can be routinely achieved for patients transferred for ST-segment elevation myocardial infarction percutaneous coronary intervention in a rural setting. J Am Coll Cardiol. 2011;57(3):272-279.
    doi pubmed
