Original Article

Volume 10, Number 6, December 2019, pages 336-344

The Safety and Efficacy of Guidezilla Catheter (Mother-in-Child Catheter) in Complex Coronary Interventions: An Observational Study

With refinements in hardwares and catheters, more complex lesions are being intervened, but these complex lesions (calcification, tortuosity, severe angulation or chronic total occlusion (CTO)) also pose additional problems as delivery of balloon or stent to these target lesions becomes difficult due to various factors like inadequate backup support and non-coaxial alignment of guide catheter. These problems can be circumvented by upsizing guide catheter, using different guide catheter, use of buddy wires, strong support wires, anchoring balloons, deep intubation of guide catheter, or using mother-in-child system [1-3]. The mother-in-child system acts as an extension system of guide catheter which not only gives additional backup support but also facilitates delivery of balloons and stents, and at the same time also ensures minimal trauma to ostium of coronary artery [4]. Among the various commercially available guide extension catheters, Guidezilla™ extension catheter (GEC), because of its unique design and profile, has increased success rate of complex high-risk percutaneous coronary intervention (CHIP). As there are limited data regarding its use, the purpose of this study was to describe its safety and efficacy among real world patients through both transfemoral and transradial approaches.

Between January 2015 and July 2019, 13,157 consecutive patients underwent percutaneous coronary intervention (PCI) through transradial or transfemoral route among which GEC was used in 156 patients at LPS Institute of Cardiology, G.S.V.M. Medical College, Kanpur, Uttar Pradesh, India. Baseline demographics of patients, including clinical (age, sex, clinical presentation and indication for coronary angiogram), angiographic outcome (target lesion, type and character of lesion) and procedural data (type of guiding catheter, guidewire (GW), stent, lesion preparation, depth of intubation of GEC) were recorded. Lesion was classified as type A, B1, B2 or C as per the American Heart Association/American College of Cardiology (AHA/ACC) criteria which included length, calcification, chronicity, angulation, and tortuosity [5]. GEC was used when balloon or stent could not be delivered to target lesion due to various technical challenges such as: 1) Anomalous origin of vessel; 2) Angulated take-off of native coronary arteries; 3) Proximal tortuosity of vessel; 4) Calcification; 5) Long lesions; and 6) Inadequate backup support for delivery of balloons and stents. In case of multiple indications, the key one leading to GEC use was considered as primary. Efficacy was defined as successful completion of PCI by deployment of stent at the target lesion. Safety was defined as absence of peri-procedural complications (perforation, dissection, stent dislodgement, and fracture of GEC). Intervention through transradial (TRI) or transfemoral (TFI) route was performed using standard protocol. Most of the procedures were performed through 6F guiding catheter except bifurcation lesion and CTO where 7F guide was used. Dual antiplatelet drugs were administered orally before performing PCI. The choice of other drugs, intervention approach, equipment, and technique was left at operator’s discretion.

All cases were performed by using 6F Guidezilla™ II catheter irrespective of guide catheter used. It creates smooth pathway for balloon and/or stent delivery by providing greater flexibility and smooth surface. It comes in working length of 150 cm and has a platinum iridium helical collar with Z-Glide™ coating which provides smooth finish and minimizes friction. Because it has two radiopaque marker bands at distal end with a radiopaque collar, this increases visibility which helps in its accurate placement and positioning especially in aorto-ostium of the coronary arteries. The radiopaque tip is soft and flexible, which reduces the risk of vessel damage and complications. GEC was advanced over the GW through Y-connector to intubate the target lesion in most of cases. In case of moderate tortuosity, it was tracked by using balloon anchoring technique. When it failed, balloon-assisted tracking (BAT) technique was used to negate razor effect of its tip. In refractory cases, balloon-assisted sliding and tracking technique (BLAST) was used to achieve deep intubation of GEC [6]. In cases of calcified lesion, GEC was advanced beyond the lesion and stent was tracked and placed distally. Once successfully parked, GEC was withdrawn proximally into guiding catheter, and stent was carefully pulled to place it across the lesion and deployed. In few cases of bifurcation lesion, GEC was used to facilitate to push balloon to open stent strut of main branch. Before delivery of side branch stent, GEC was removed.

Statistical analyses were performed using SPSS 19.0 (SPSS Inc., Chicago, IL, USA). All continuous variables were expressed as the mean ± standard deviation, and categorical data were recorded as percentage.

Transluminal coronary angioplasty (PTCA) was performed in all patients as per current guideline only when there was evidence of ischemia. This was an observational study as Guidezilla was used when stent could not be deployed by conventional technique. PTCA was performed only after obtaining informed consent. Use of Guidezilla catheter is a standard part of PTCA when other method to deliver the stent fails. It is not something out-of-the-box approach.

What we are reporting here is observational findings of Guidezilla catheter to facilitate PTCA when conventional technique to deliver stents failed. PTCA was performed only after obtaining informed consent in all patients.

Baseline data of the patients is presented in Table 1. The mean age was 61.2 ± 8.67 years with men of 118 (76%) outnumbering the women of 38 (24%). Hypertension was commonest risk factor (n = 52; 33.4%) followed by smoking (n = 39; 25%), diabetes mellitus (n = 37; 23.7%), and dyslipidemia (n = 28; 17.9%). The commonest clinical presentation was non-ST-segment elevation myocardial infarction (NSTEMI) (n = 51; 32.7%), followed by unstable angina (UA) (n = 45; 28.9%), ST-segment elevation myocardial infarction (STEMI) (n = 40; 25.6%), and chronic stable angina (CSA) (n = 20; 12.8%). Most of the intervention requiring GEC were performed through TFI (n = 102; 64.4%) and remaining by TRI (n = 54; 35.6%). Type-C lesion was commonest (69.9%) followed by B2 (22.4%) and B1 (7.7%). The commonest indication for GEC was tortuosity (30.1%) followed by calcification (21.1%), angulation (18.8%), CTO (17.9%), distally located lesion (8.3%), and anomalous origin of vessel in 3.8% as shown in Table 2 and Figure 1.

Click to view

Table 1. Baseline Characteristics of Patients (n = 156)

Click to view

Table 2. Clinical and Procedural Data of Patients Who Underwent PCI Using Guidezilla Catheter (n = 156)

Click for large image

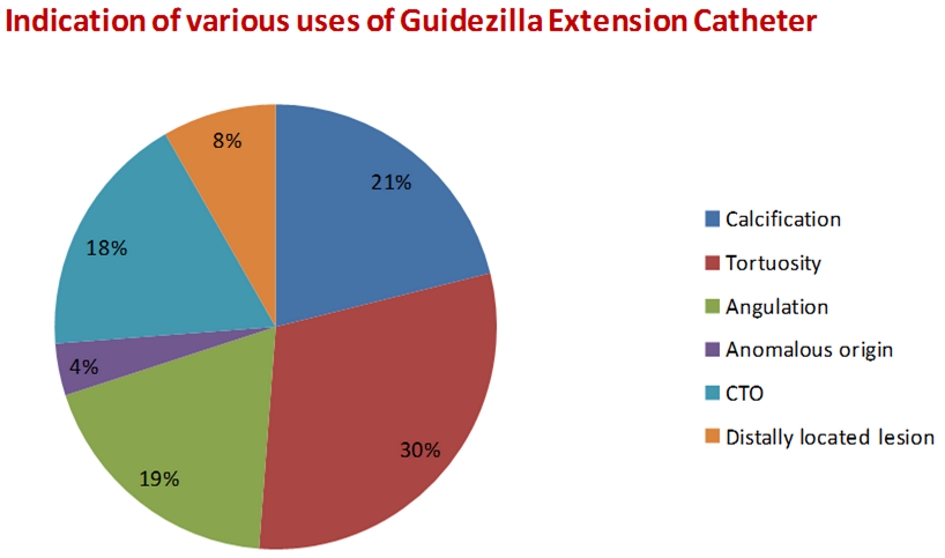

Figure 1. Indications for various uses of Guidezilla extension catheter in PCI. PCI: percutaneous coronary intervention.

The right coronary artery (RCA) was most commonly intervened (39.2%; Figs. 2-4) followed by left anterior descending (LAD) (30.8%; Fig. 5), left circumflex (LCX) (19.9%; Figs. 6, 7), multivessels (7.6%), and saphenous vein graft (SVG; Figs. 8-10) in 2.5%. The mean depth of intubation was 4.2 ± 1.9 cm. Mean diameter and mean length of stents was 3.4 ± 1.2 mm and 34.2 ± 14.4 mm respectively. Lesions were modified using aggressive pre-dilatation in 87.8% and cutting balloon in 10.9% of cases. GEC was delivered across the lesion using buddy wire technique in 9.6% (Fig. 9a), BAT (Fig. 9b) in 30.1%, and BLAST in 4.5% of cases. Stent implantation was successful in 149 out of 156 patients with success rate of 96.7%. Overall failure rate was 3.3% which was contributed by extreme tortuosity, angulation, and severe calcification. In two cases, GEC could not be negotiated across the lesion despite all maneuver and procedure were abandoned. GEC-associated procedural complications (dissection, stent dislodgement, shaft breakage) were reported in three (1.9%) patients who were successfully managed. In one cases, proximal dissection of RCA occurred with edge of GEC which was stented. Stent stripping, because it had become deformed while crossing the collar segment of GEC, occurred in one patient but fortunately there was no dislodgement as stent remained inside it. GEC along with wire as a whole assembly was removed. Collar fracture of GEC was encountered in one case because of vigorous manipulation for which entire assembly (guide catheter and Guidezilla) was pulled, and procedure was abandoned.

Click for large image

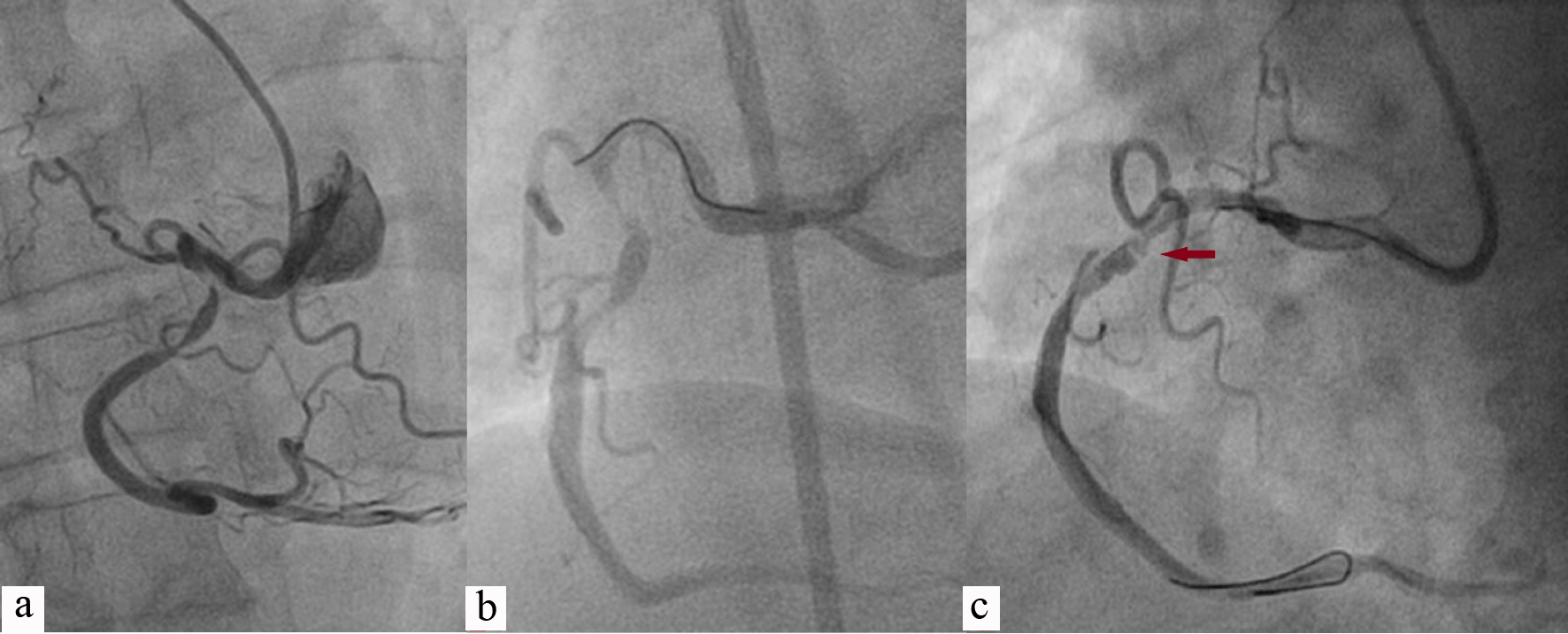

Figure 2. PCI of RCA having acute take-off origin (a); wired with Sion blue (Asahi, Japan) showing concertina effect (horizontal arrow; b, c). PCI: percutaneous coronary intervention; RCA: right coronary artery.

Click for large image

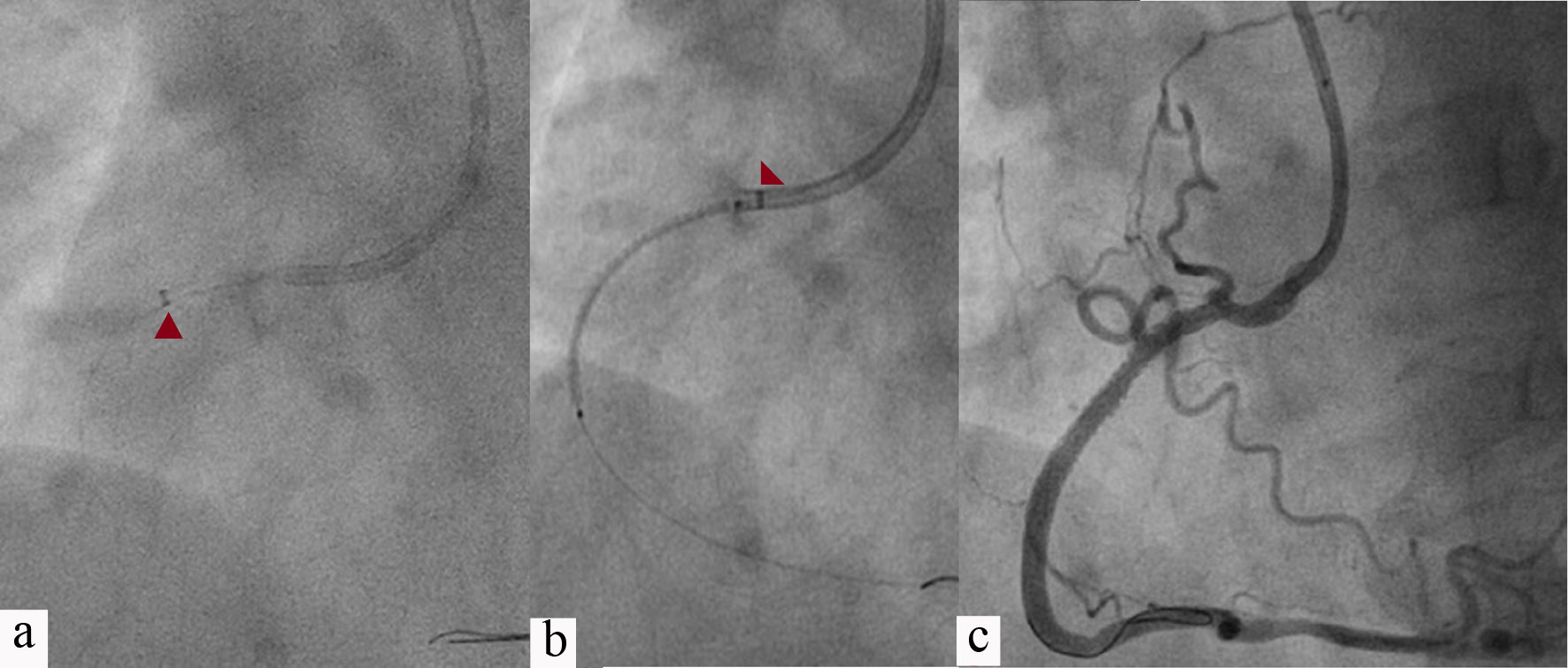

Figure 3. Guidezilla catheter was extended up to mid-RCA (red arrowhead; a); 3.5 × 38 Endeavour Resolute (Zotarolimus-eluting stent, Medtronic, CA, USA) was positioned across the lesion after pulling Guidezilla into guiding catheter (red arrowhead; b); Lesion was stented after deploying stent at 14 atm pressure showing TIMI 3 flow (c). RCA: right coronary artery; atm: atmospheric pressure; TIMI: thrombolysis in myocardial infarction.

Click for large image

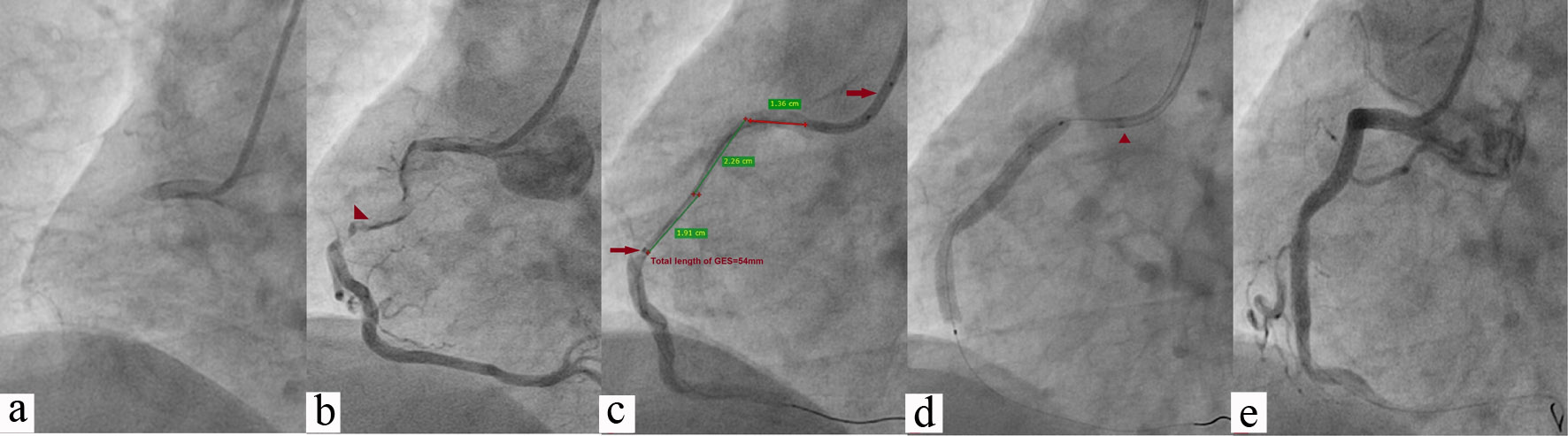

Figure 4. Chronic total occlusion of RCA (a); It was wired with Fielder XT with caravel microcatheter support (Asahi, Japan) (b); GEC was pushed beyond the lesion with balloon anchoring technique (54 mm, red arrowhead; c); 3.5 × 42 Supralimus Grace (Sirolimus-eluting stent, Sajahanand Medical, Gujarat, India) was positioned across lesion after pulling Guidezilla into guiding catheter (red arrowhead; d); Lesion was stented after deploying stent at 14 atm pressure showing TIMI 3 flow (e). RCA: right coronary artery; GEC: Guidezilla extension catheter; atm: atmospheric pressure; TIMI: thrombolysis in myocardial infarction.

Click for large image

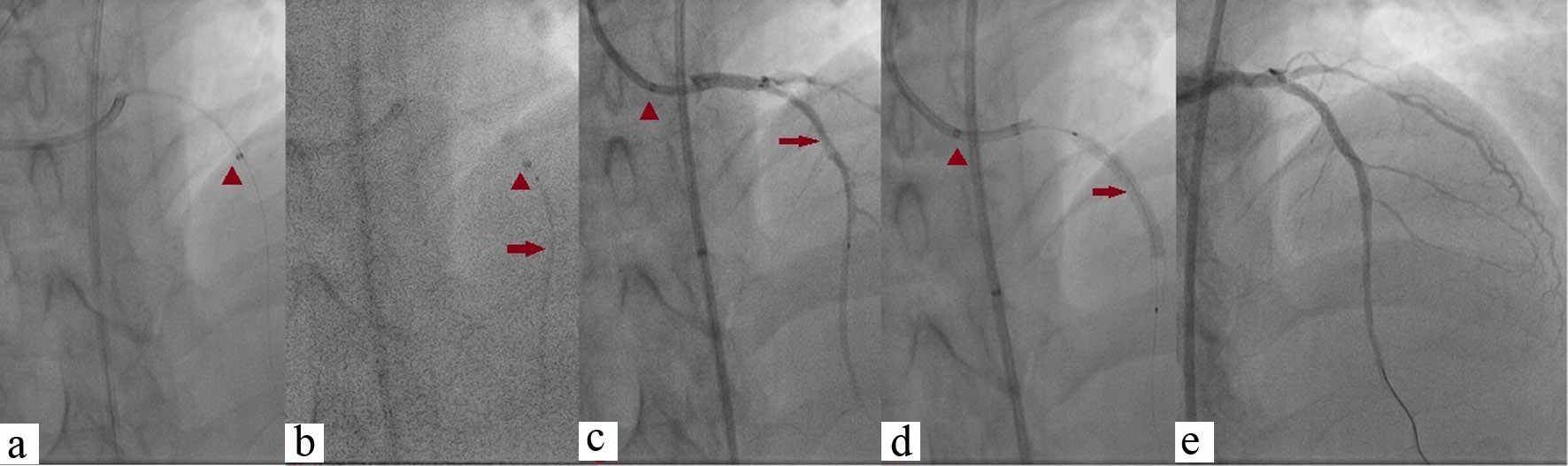

Figure 5. Chronic total occlusion of ostial LAD which was wired with Conquest-Pro 12 with caravel microcatheter support. Lesion was predilated and GEC was pushed beyond the lesion (red arrowhead; a, b); 3.5 × 42 Supralimus Grace was positioned across the lesion (red arrow; b, c) after pulling Guidezilla into guiding catheter (red arrowhead; c, d); Lesion was stented at 14 atm pressure showing TIMI 3 flow by pulling it further and properly positioned across the lesion (d, e). LAD: left anterior descending; GEC: Guidezilla extension catheter; atm: atmospheric pressure; TIMI: thrombolysis in myocardial infarction.

Click for large image

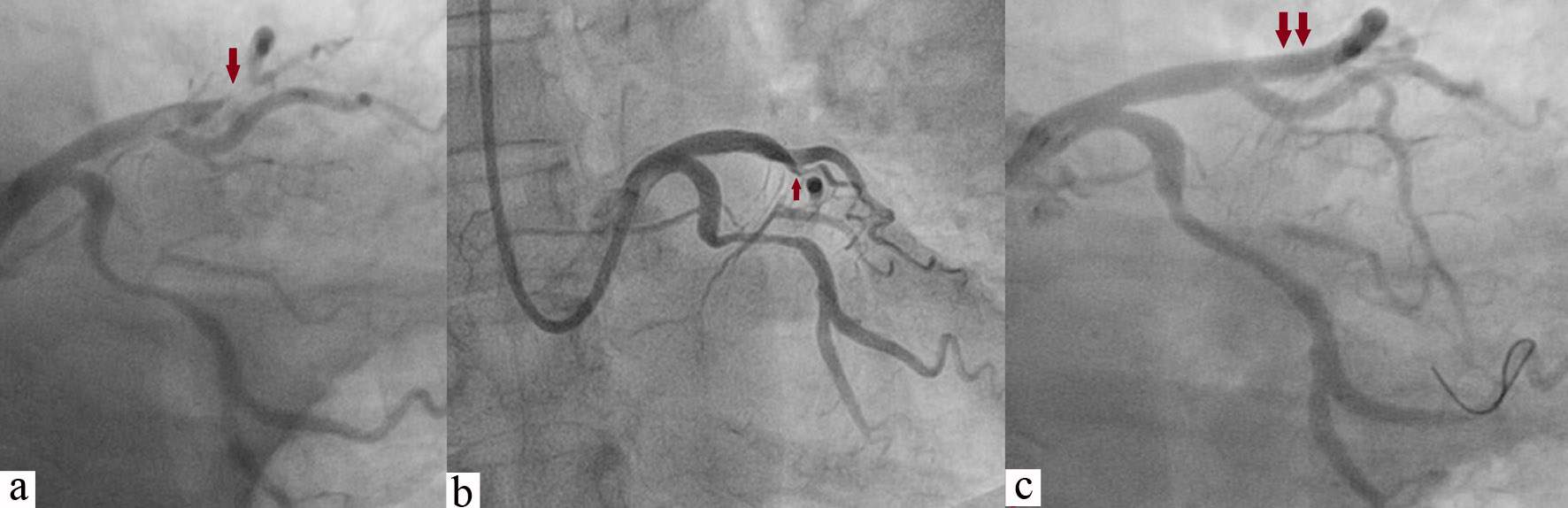

Figure 6. Tortuous diffuse lesion of LCX along with focal lesion of LAD (red arrow; a, b); LAD was stented with 3.5 × 18 mm Endeavour Resolute at 13 atm pressure achieving TIMI 3 flow (double arrow; c), and LCX was wired with Sion blue wire (c). LCX: left circumflex; LAD: left anterior descending; atm: atmospheric pressure; TIMI: thrombolysis in myocardial infarction.

Click for large image

Figure 7. After adequate predilatation, GES was pushed beyond the lesion (73 mm, red arrow; a); 3.5 × 46 Supralimus Grace stent was positioned across the lesion after pulling Guidezilla into guiding catheter (red arrowhead; b); Lesion was stented after deploying stent at 14 atm pressure showing TIMI 3 flow (c). GEC: Guidezilla extension catheter; atm: atmospheric pressure; TIMI: thrombolysis in myocardial infarction.

Click for large image

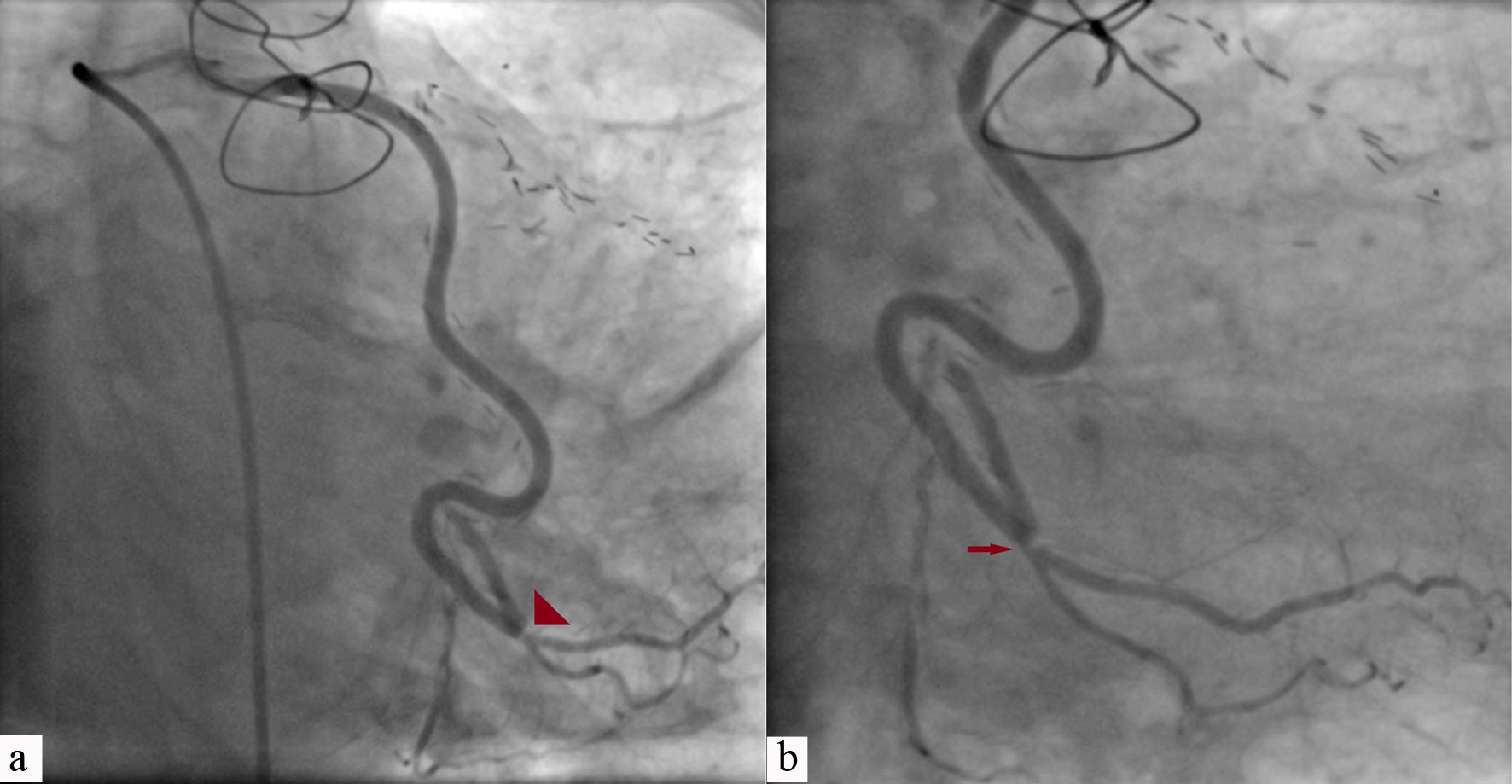

Figure 8. Critical stenosis of SVG to obtuse marginal branch of LCX at anastomotic site in a post-CABG patient who presented with stable angina of CCS class III (red arrowhead, a; red arrow, b). SVG: saphenous vein graft; LCX: left circumflex; CABG: coronary artery bypass graft; CCS: Canadian Cardiovascular Society.

Click for large image

Figure 9. Lesion was wired using Sion blue wire and Guidezilla (red arrowhead) was advanced using buddy wire technique (a); Great difficulty was encountered to push GES which was further advanced with 2.5 × 10 mm sprinter legend balloon (red horizontal arrow, Medtronic, CA, USA) using BAT (b); 3 × 18 mm Endeavour Resolute stent (vertical arrow) was pushed beyond lesion by keeping buddy wire to garner adequate support (c). GEC: Guidezilla extension catheter; BAT: balloon-assisted tracking.

Click for large image

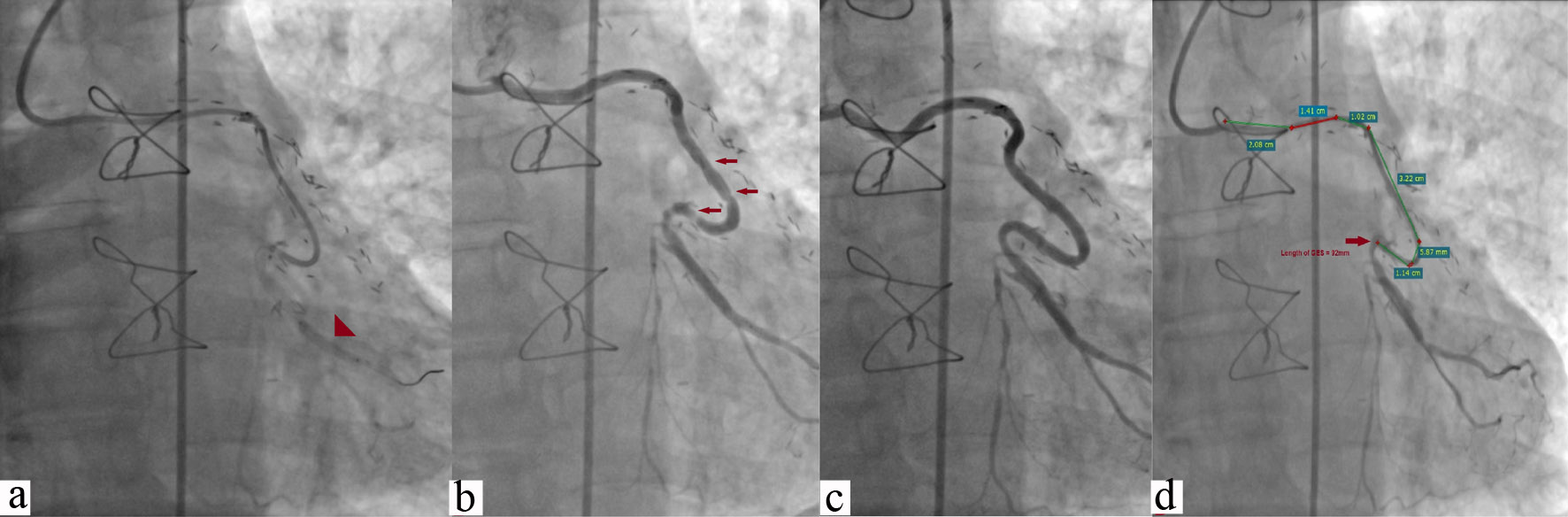

Figure 10. Stent was pulled to position across the lesion after removing buddy wire and deployed at 13 atm pressure (arrowhead) (a); TIMI 3 flow was achieved along with concertina effect (multiple horizontal arrows) after withdrawing GEC (b); Smooth flow after removing the wire which removed concertina effect which was wire bias effect (c); Deep intubation of Guidezilla catheter (92 mm) (d). atm: atmospheric pressure; GEC: Guidezilla extension catheter; TIMI: thrombolysis in myocardial infarction.

There are limited data regarding safety and efficacy of GEC and most of them had 20 to 30 patients [7, 8]. This is the largest data of successful use of the GEC incorporating details of 156 patients which showed that it is a useful tool in cases of challenging and complex PCI both through TRI and TFI [5, 9, 10]. TRI of complex lesion is often challenging because delivery of hardwares becomes a limiting factor which can be circumvented using GEC. All intervention through radial route was successful while overall success rate was 96.7% in our study which is similar as reported by Chan et al [5] and De Man et al [9]. Many of these cases were result of increased backup support of guide catheter as a result of Guidezilla extension, especially in cases where RCA had either acute take-off angle or shepherd crook type of origin (Fig. 2a, b). Such type of cases were performed using Amplatz guide catheter and GEC which otherwise could not have been possible. This was similarly demonstrated by Takahashi et al [10]. In such scenario, GEC helps in achieving deeper intubation of guide catheter as it glides over GEC. This “rail-roading” effect would not be possible over the GW alone as demonstrated by Farooq et al [11]. Once GEC is deeply intubated, one should be careful about the pressure trace of the artery as it gets pseudo-dampening. Hence, blood pressure, heart rate and other hemodynamic parameters should be carefully monitored during the procedure to prevent the coronary blood flow being affected by Guidezilla catheter. Sometimes, it can also be used for selective injection of contrast for better visualization of target lesions which therefore minimizes amounts of contrast, especially in patients with compromised renal function as shown by De Man et al [9], although such cohort of patients were not there in our study.

Currently, there are four types of commercially available guide extension catheter: Proxis (St. Jude Medical, MN, USA), Heartrail II (Terumo, Japan), GuideLiner, and Guidezilla. The Proxis catheter is basically a proximal embolic protection device that, apart from being used during routine SVG interventions, can also be used to increase guide support by anchoring the guide catheter by deep intubation and inflation of Proxis sealing balloon [12]. The Proxis device and Heartrial II catheter are 120-cm long which require removal of Y-connector before their introduction into mother guide. Being 5F in calibre, they provide telescoping of guide catheter. These devices need more caution in the cases of acutely angulated vessel or lesion requiring intubation into LAD or LCX as it may undergo kinking. Moreover, their data regarding these scenarios is lacking [13]. GuideLiner V3 catheter (Vascular Solutions, MN, USA) is another guide catheter extension system (GCES) whose distal end is tubular, and being flexible it can be deeply advanced into vessels, thereby providing support without need to disconnect it from the mother guide.

The Guidezilla has a smaller outer diameter (1.68 mm) and bigger inner luminal diameter (1.45 mm) than contemporary GuideLiner catheter (0.057″ vs. 0.056″). Because of its unique design and having smaller external diameter, 6F mother guide can easily accommodate a 6F Guidezilla catheter, as a result of which it can be easily pushed deep down into artery because outer diameter reduces its interference with mother guide. It has 34% more pushability, 96% less frictional force, and 13% more backup support than GuideLiner catheter. It has more room for deliverability of hardwares because of larger inner diameter.

In our study, calcification and tortuosity contributed nearly 50% of indications for its application, primarily to achieve deep intubation to garner more support (Figs. 2, 4, 6-10). Stiff-yet-flexible stainless steel hypotube shaft of Guidezilla catheter provides exceptional pushability and kink resistance while advancing it beyond the tip of mother guide. It has been demonstrated by Takahashi et al [10] using in-vitro model that mere 5 mm protrusion of 5F child catheter beyond tip of mother guide gives significantly greater support than that provided by 7F guide catheter alone. The mean depth of intubation in our study was 42 ± 19 mm (minimum for ostial lesion of LCX, and maximum 92 mm for SVG graft) (Fig. 10c), which is similar to that reported by Chan et al [5] and Dursun et al [14] though the longest intubation depth is 120 mm as reported by Ma et al [15]. Much deeper intubation of Guidezilla device may cause entire segment to prolapse outside ostium of coronary artery, impairing withdrawal of device, and with loss of co-axiality.

In cases where difficulty was felt to advance the Guidezilla catheter to the appropriate location for sufficient backup support, several techniques could be used: 1) Buddy wire technique, which uses another wire to stabilize Guidezilla and increase support (Fig. 9a); 2) Anchoring balloon technique, in which a balloon is deployed distal to the target vessel in a small branch or in a stent that was previously placed at another vessel and dilated at low pressure while simultaneously and carefully pushing the Guidezilla catheter (Fig. 9b); 3) Lesion modification followed by BAT; and (d) BLAST in refractory cases. All of these methods were used in our study to achieve positive results (Table 2). In certain lesions where segment was distorted and calcified, GEC was advanced much beyond the target segment in order to get strong support force and unhindered track of stent (Figs. 4a, 5a, 5b, 7a).

Guidezilla catheter also facilitates intervention of CTO lesions in many ways. It can assist initial wiring of the lesion, advancement of micro-catheter (Finecross, Caravel), balloon, and delivery of stent. In our study, GEC was used in five cases for advancing Caravel microcatheter (Ashahi, Japan), balloon crossing in 11 cases, and stent delivery in 12 cases among all CTO interventions. Its another novel use may be in reverse controlled antegrade and retrograde subintimal tracking (reverse CART), as described by Mozid et al [16], although they used GuideLiner catheter instead of Guidezilla. It shortens the distance between point of retrograde GW re-entry and tip of antegrade guiding catheter, though in our study, such cases were none.

GEC-related peri-procedural complications were proximal dissection of the RCA requiring stenting, stent stripping, and collar fracture of Guidezilla, which were encountered in one case each. This is similar to that reported by Waggoner et al [17]. Stent stripping probably occurred due to vigorous manipulation at the proximal junction transition as stainless steel collar of the Guidezilla is not as flexible as the polymer collar of the GuideLiner. In such circumstances, it is always better to pull the whole assembly along with unimplanted stent.

Farooq et al [11] reported about potential risk of damage to bulky stents as they enter the collar and advised using low-profile stents with the GES, avoiding ones more than 4 mm in diameter, though 16 patients (10.2%) had received 4-mm stent in our study with no complication. Our data was retrospectively obtained from a single centre having small sample size, and accordingly native bias cannot be negated. So, larger study is warranted to further investigate our findings.

Guidezilla use was associated with a high success rate with no major complications which facilitates complex PCI through both transradial as well as transfemoral route. It is non-inferior to the other three guide extension catheters across all spectrum of PCI.

Acknowledgments

None to declare.

Financial Disclosure

None to declare.

Conflict of Interest

None to declare.

Informed Consent

Informed consent was obtained from all the patients prior to the procedure as all patients were admitted in our hospital.

Author Contributions

All authors made substantial contributions to the conception or design of the work, and the acquisition, analysis, or interpretation of data for the work; drafting the work or revising it critically for important intellectual content; gave final approval of the version to be published, and agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
